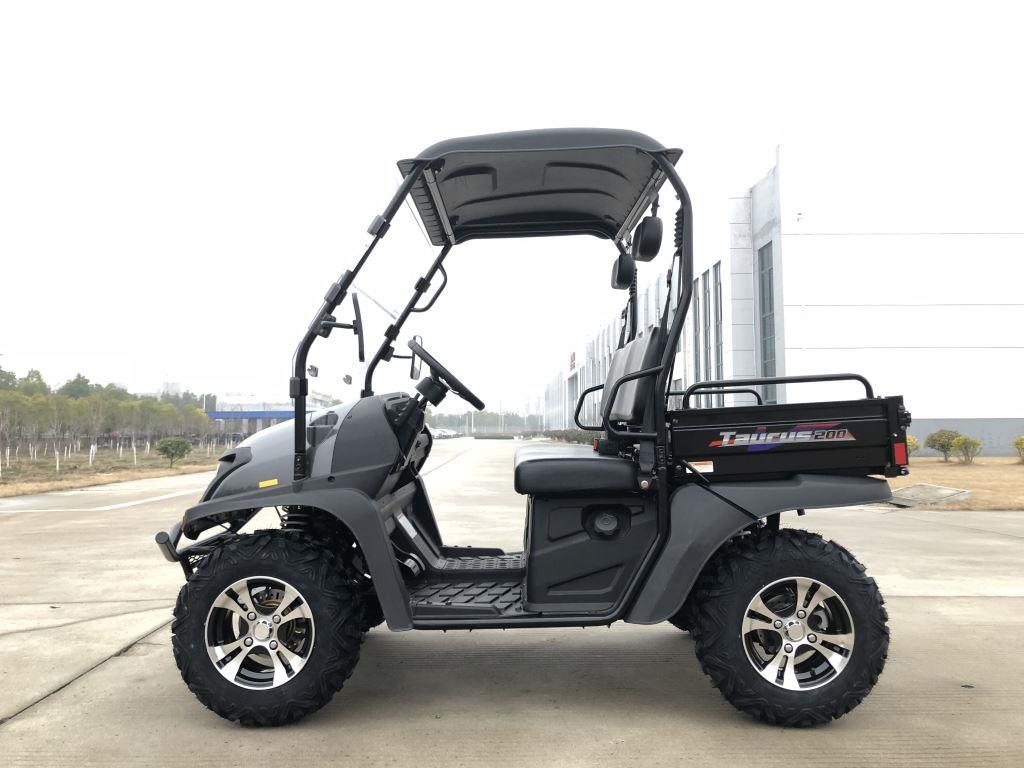

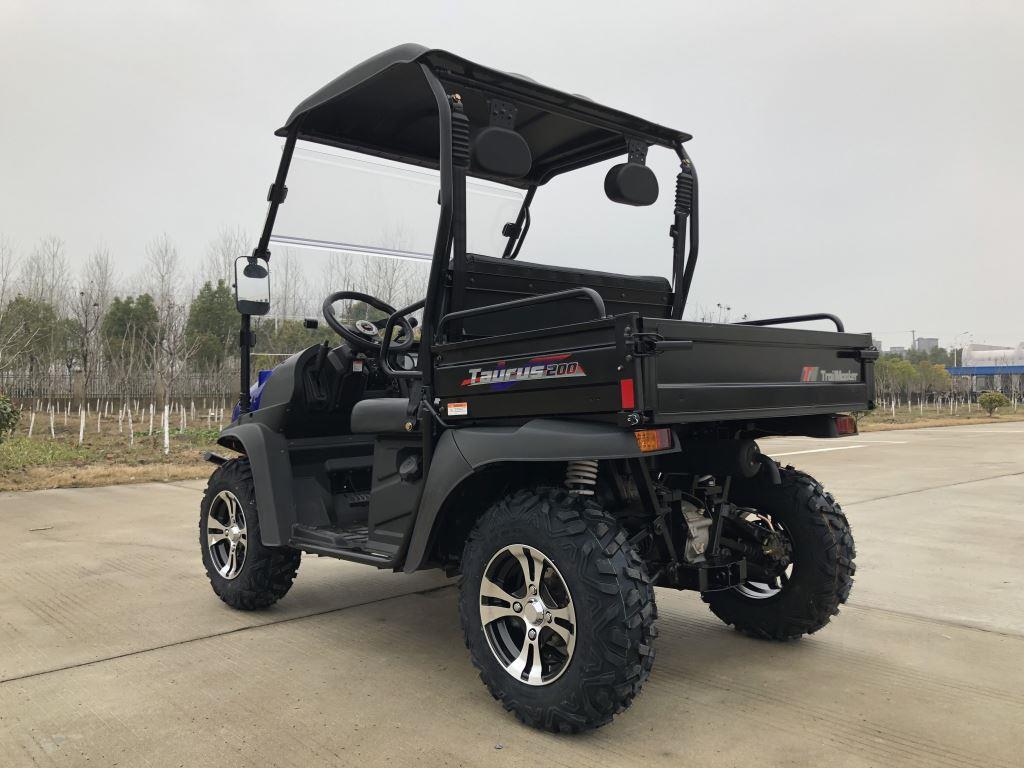

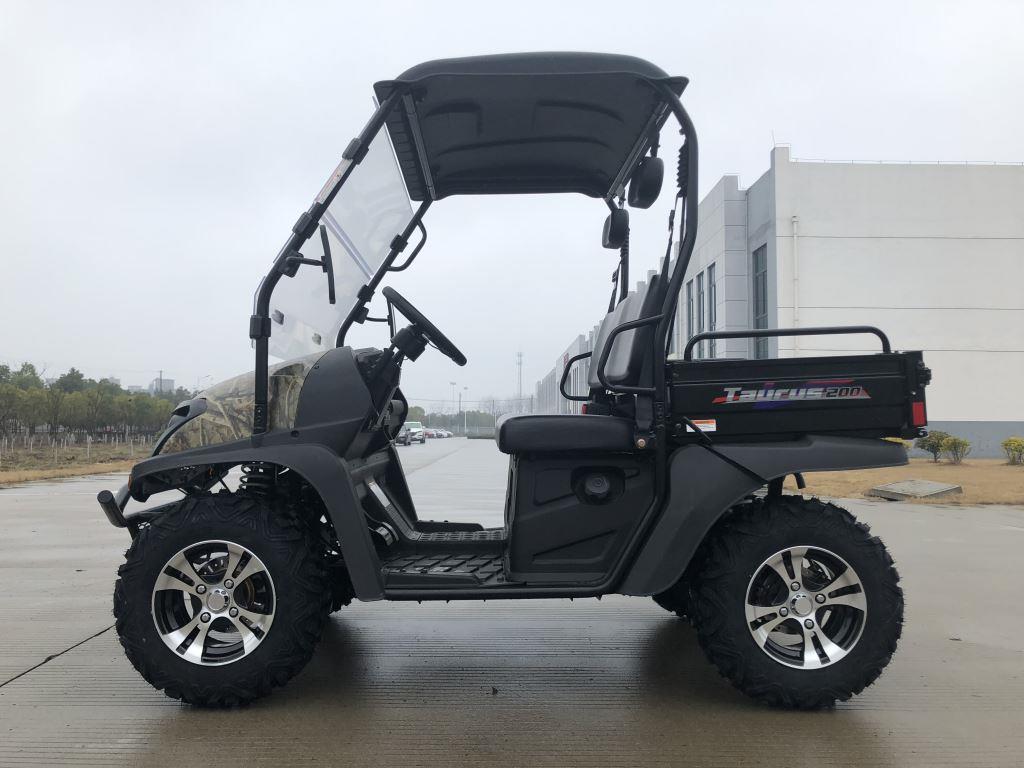

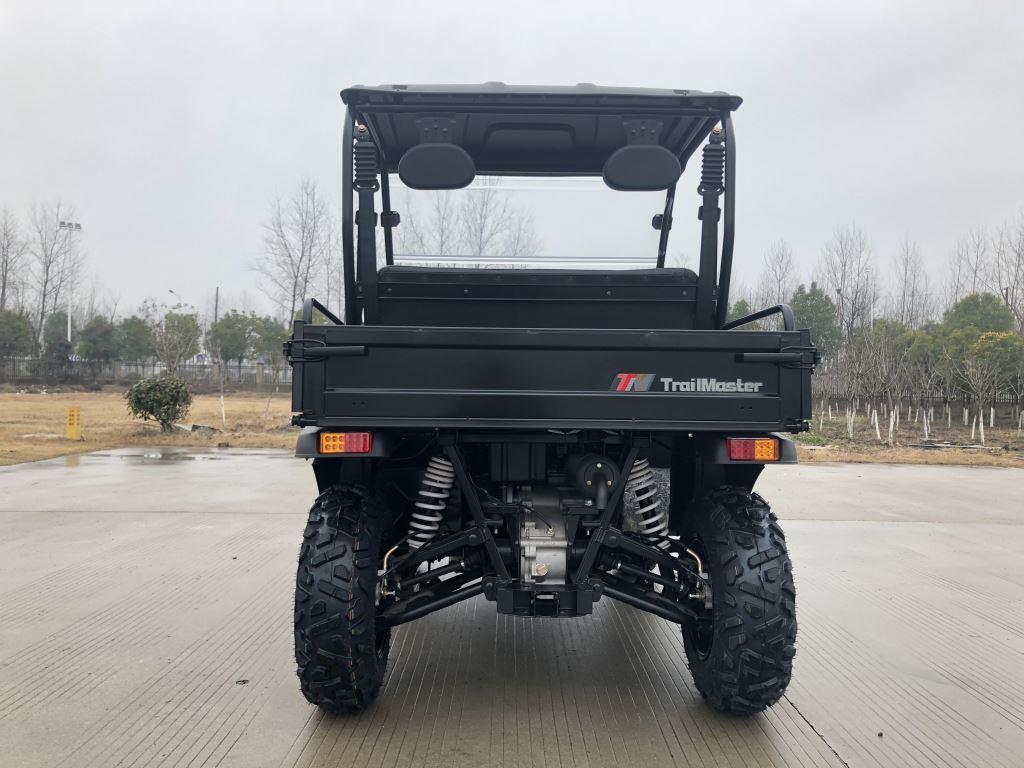

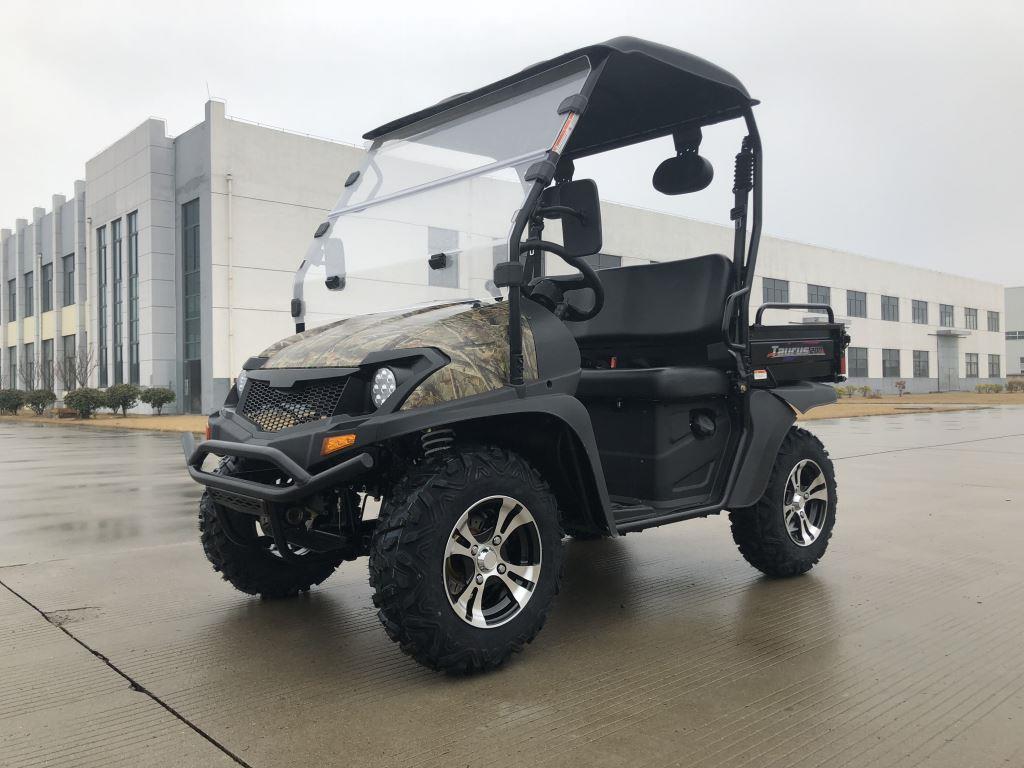

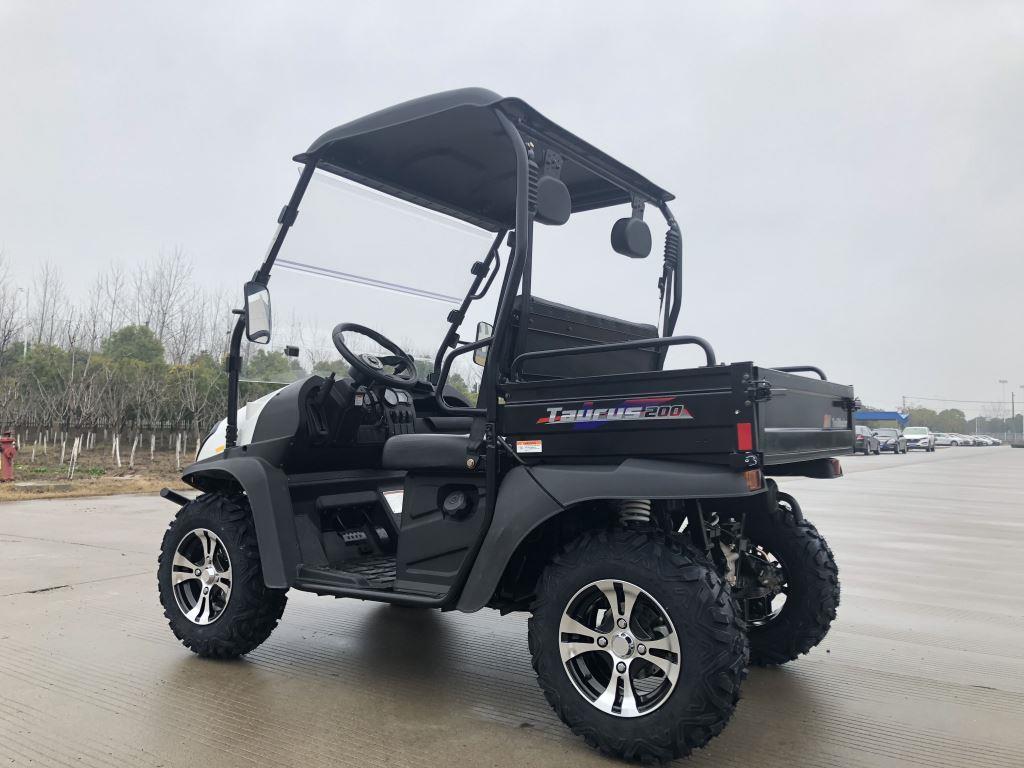

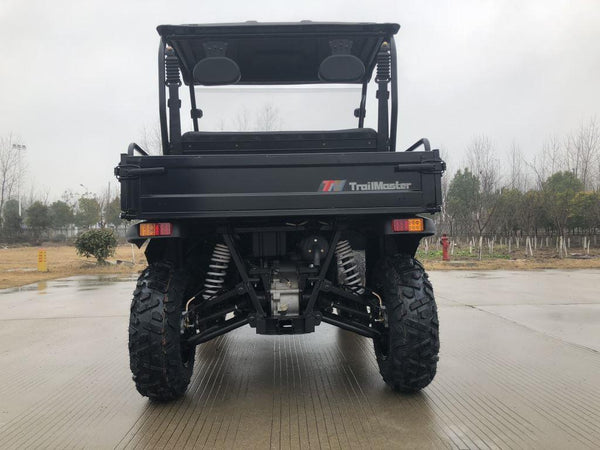

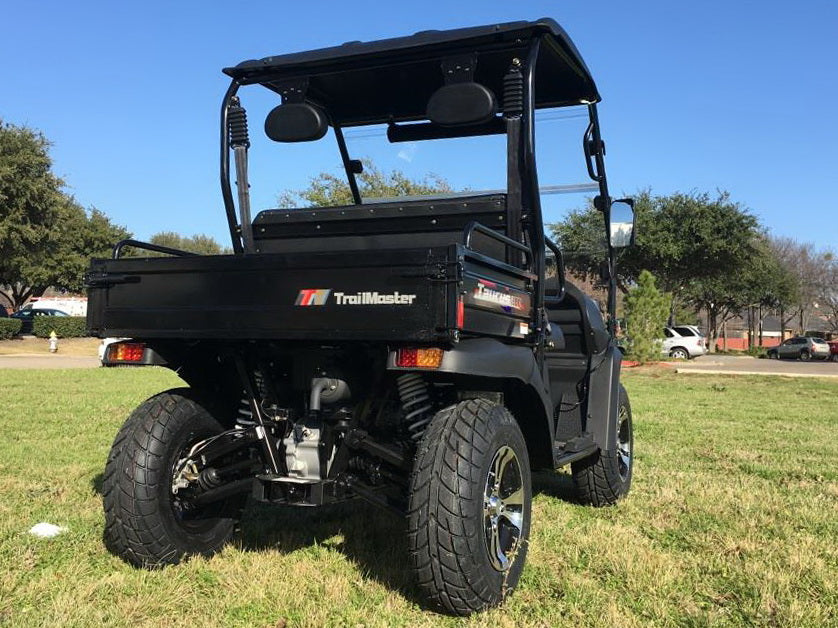

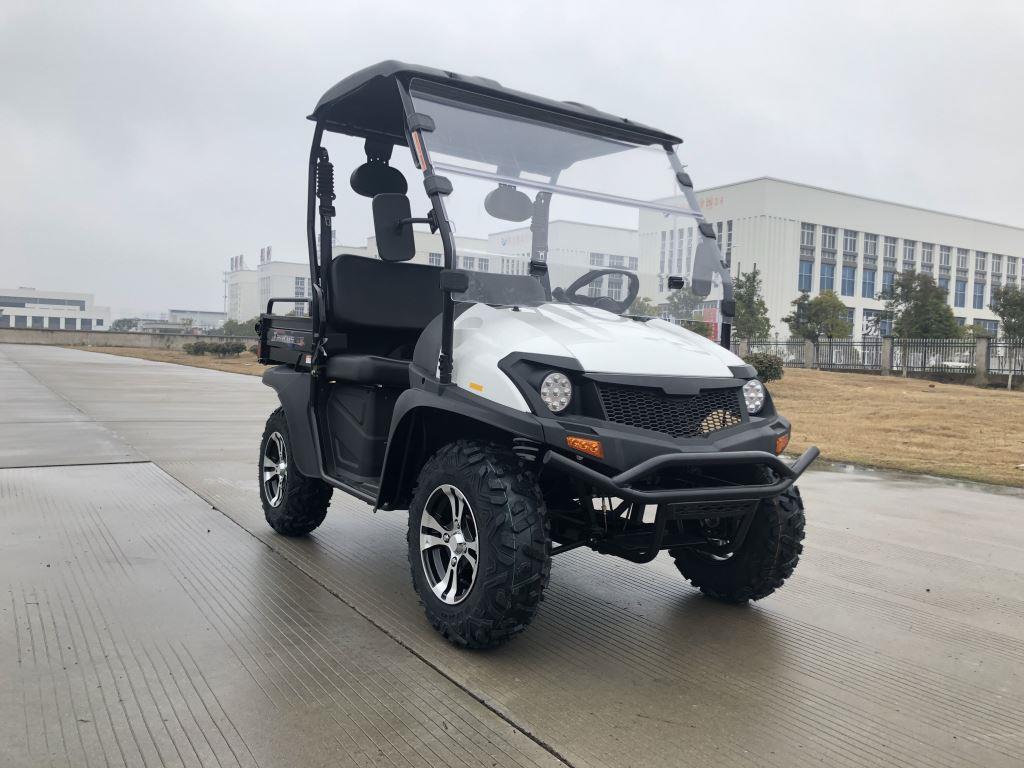

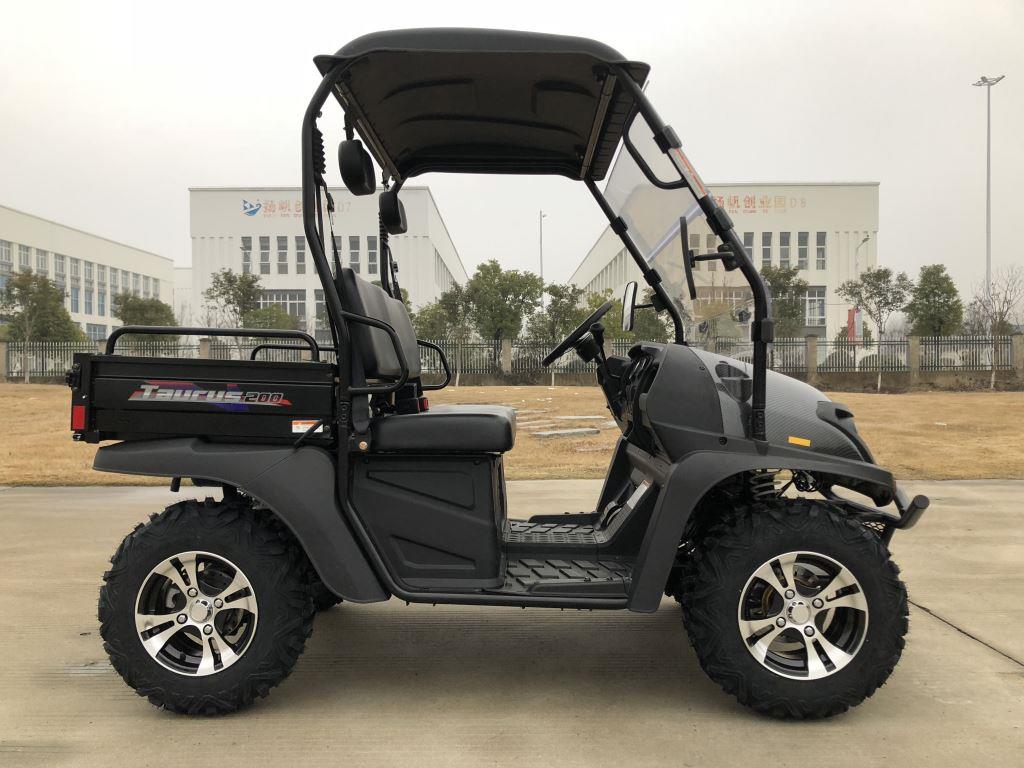

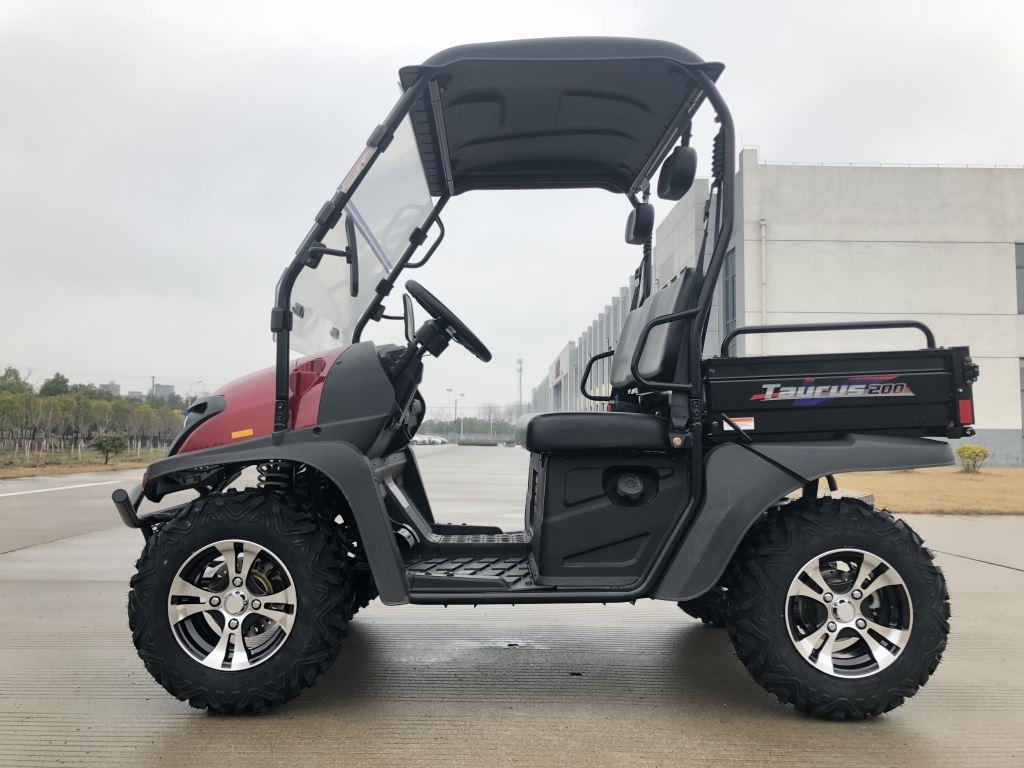

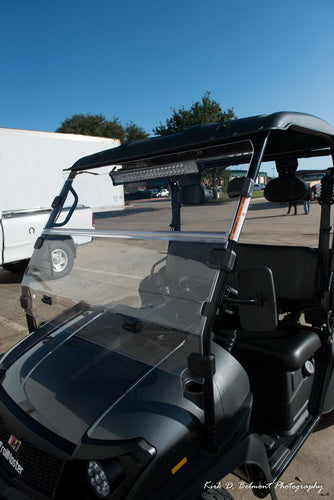

Trailmaster Taurus 200U UTV
Trailmaster Taurus 200U UTV

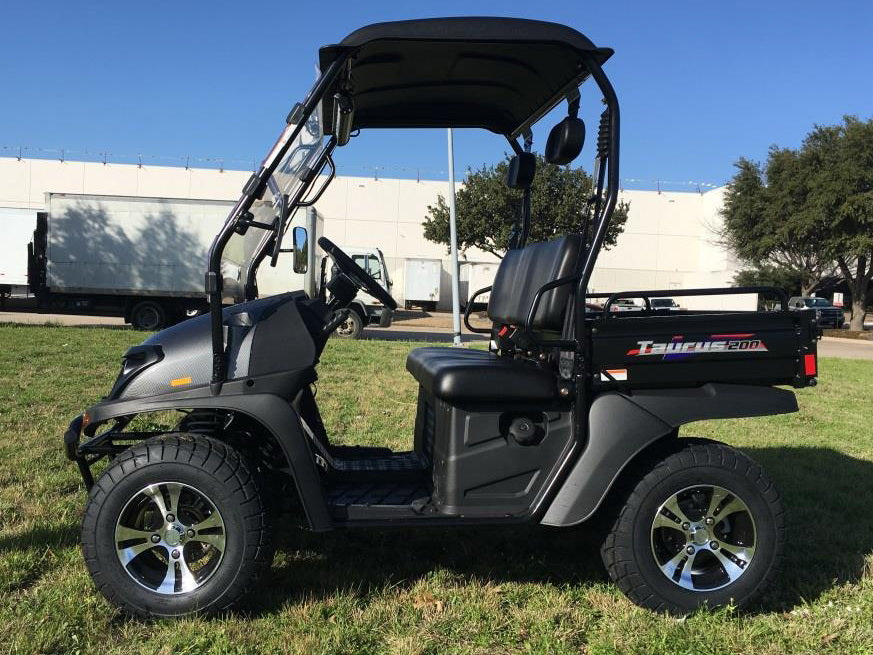

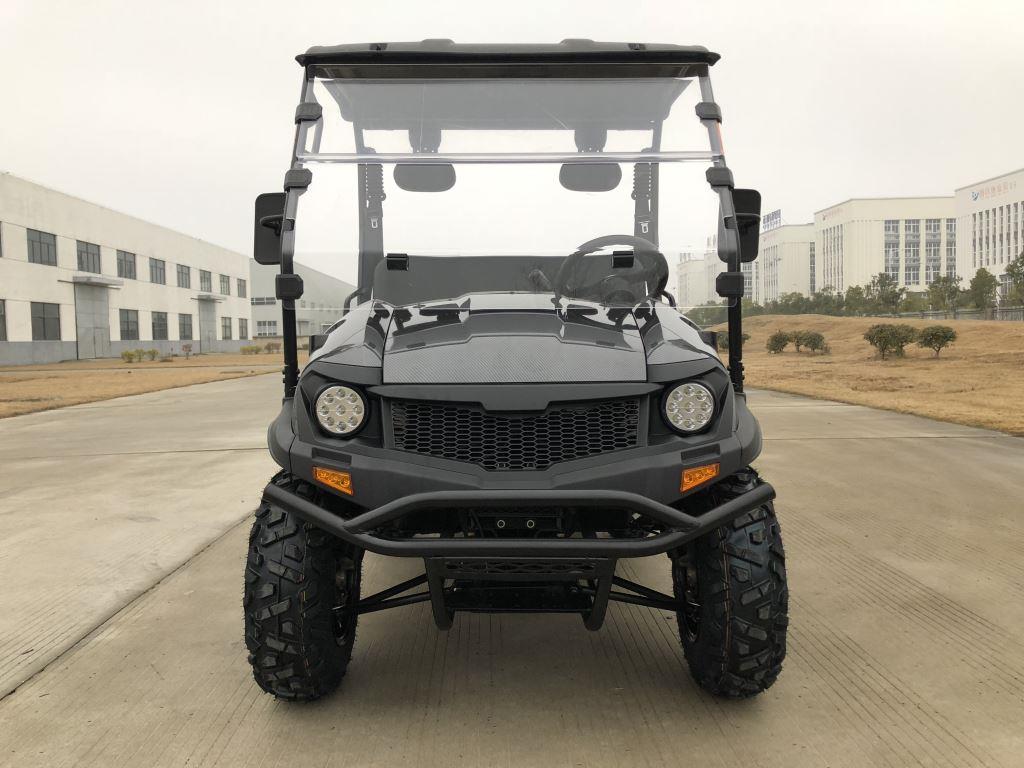

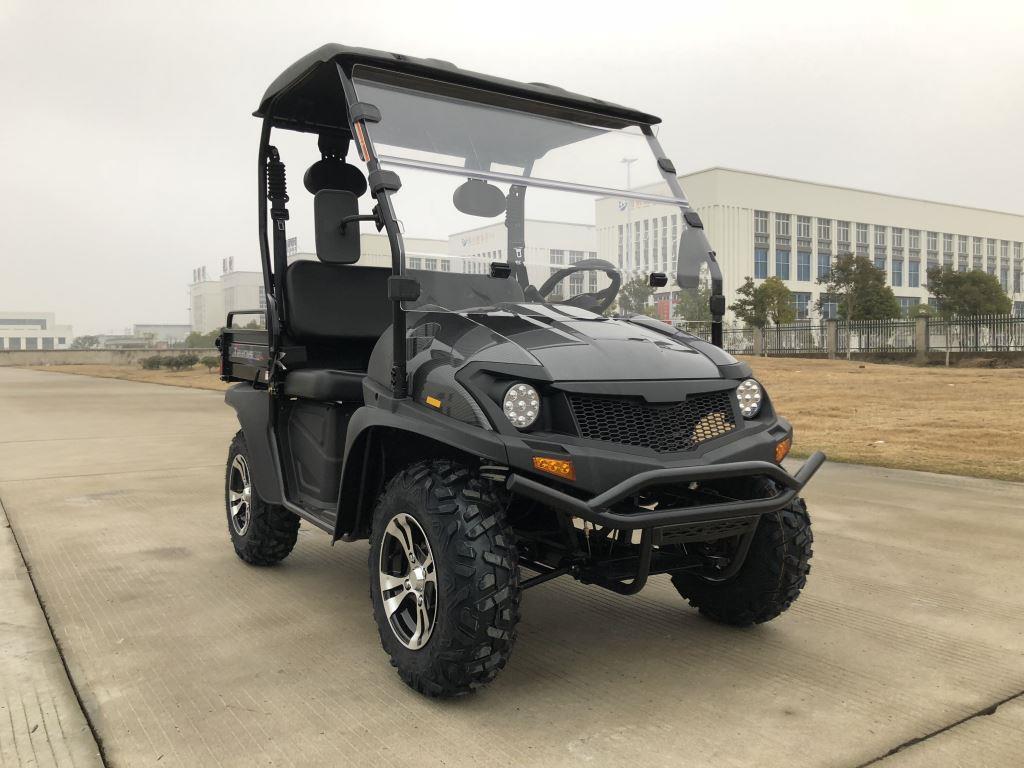

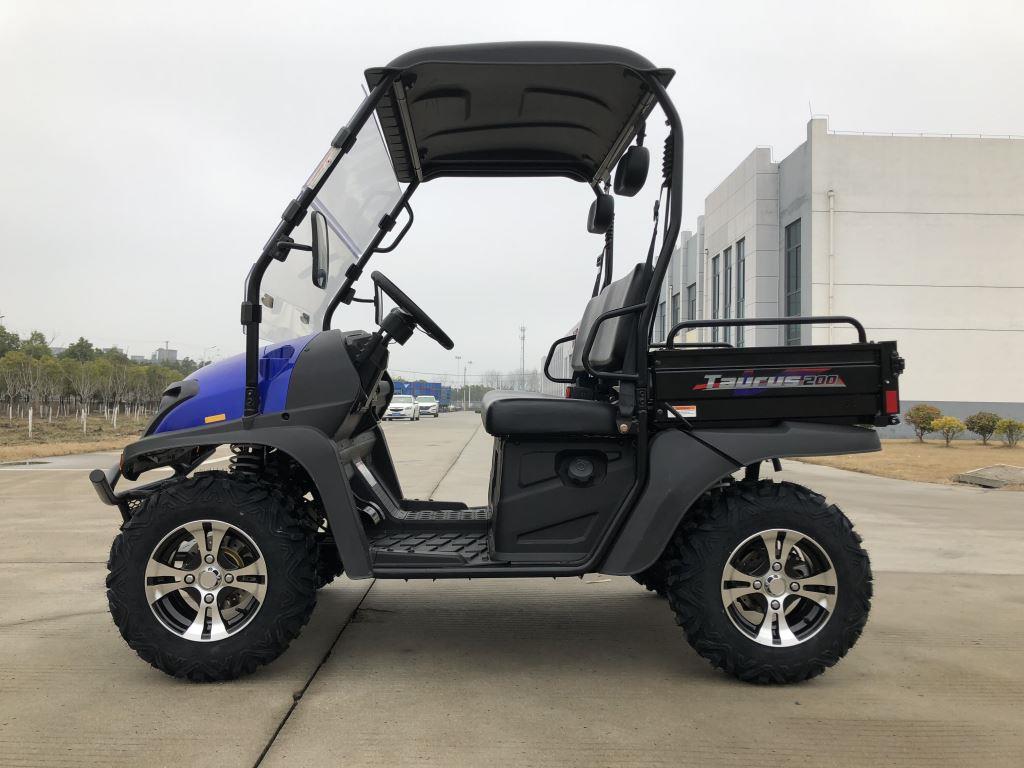

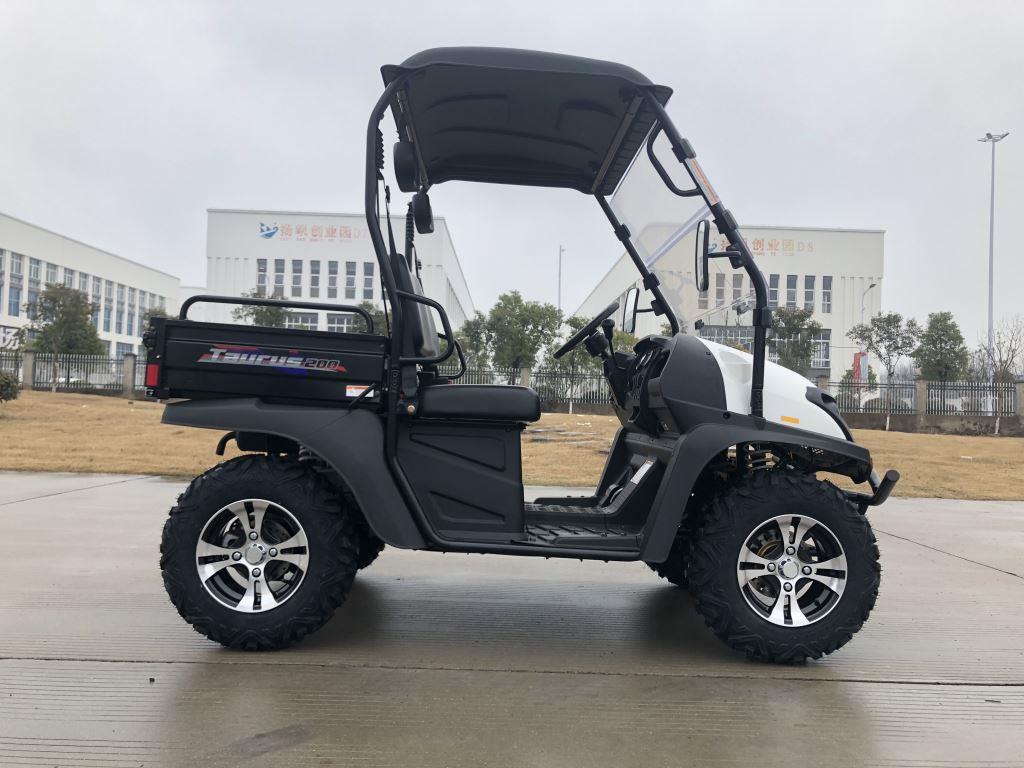

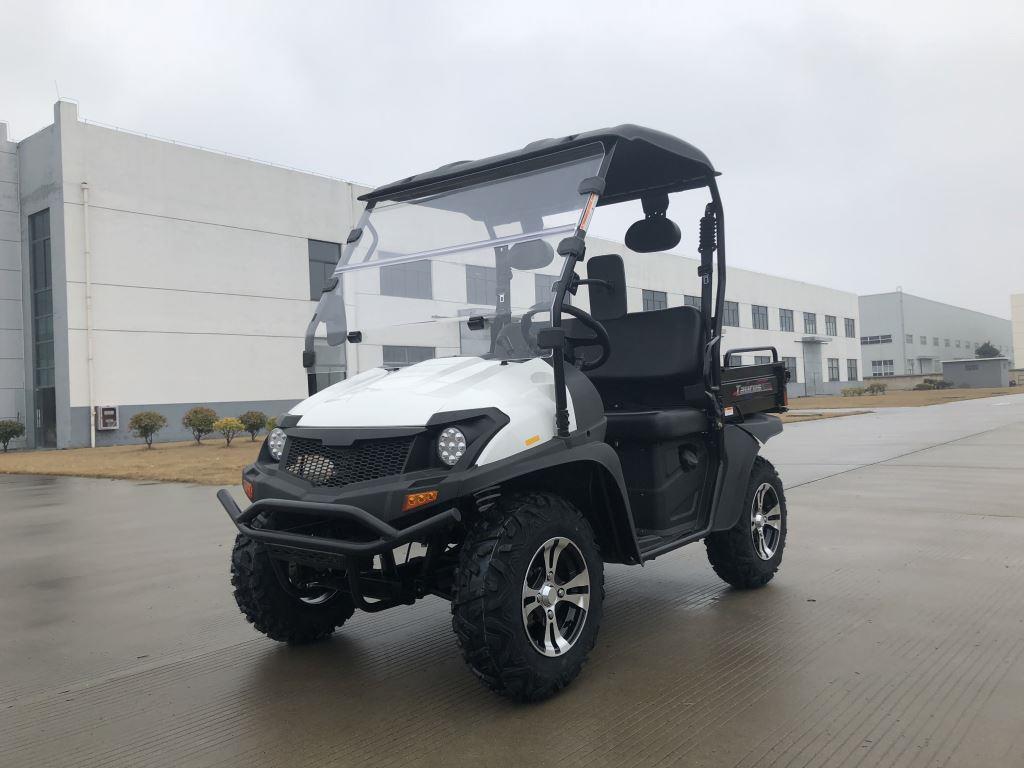

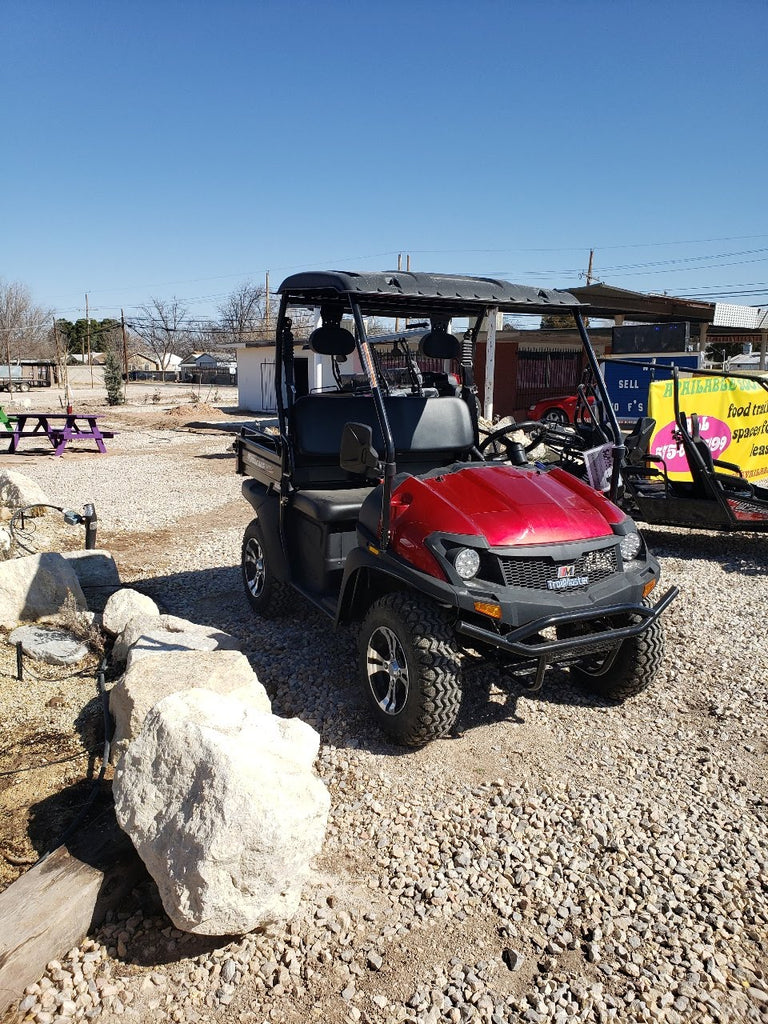

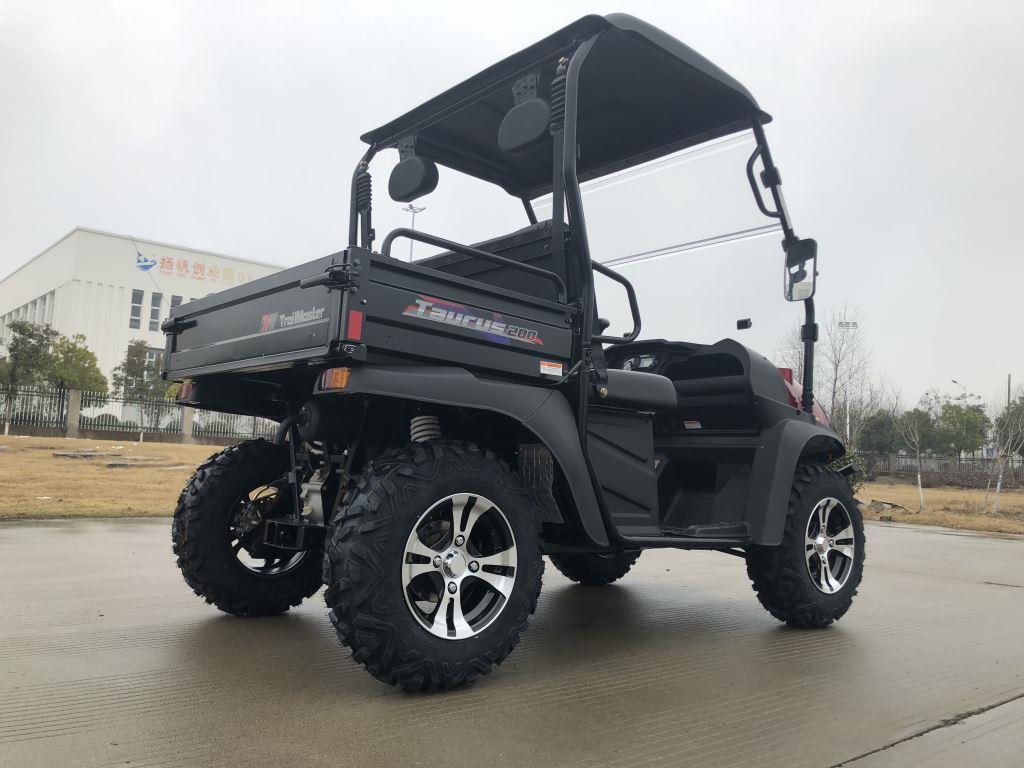

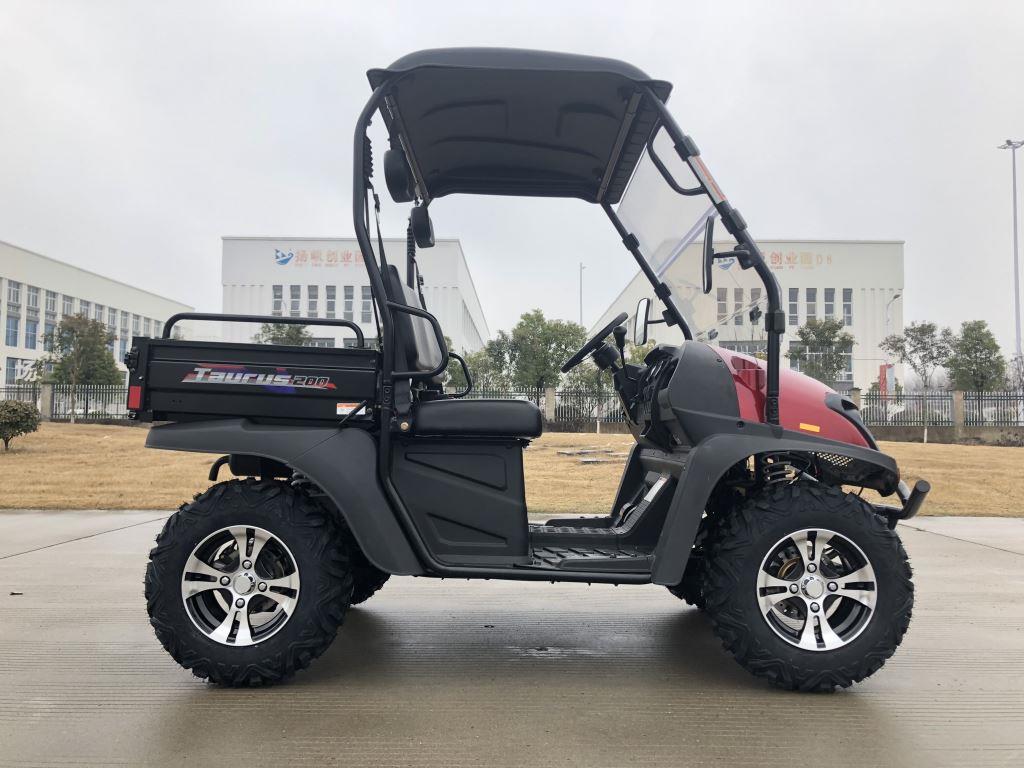

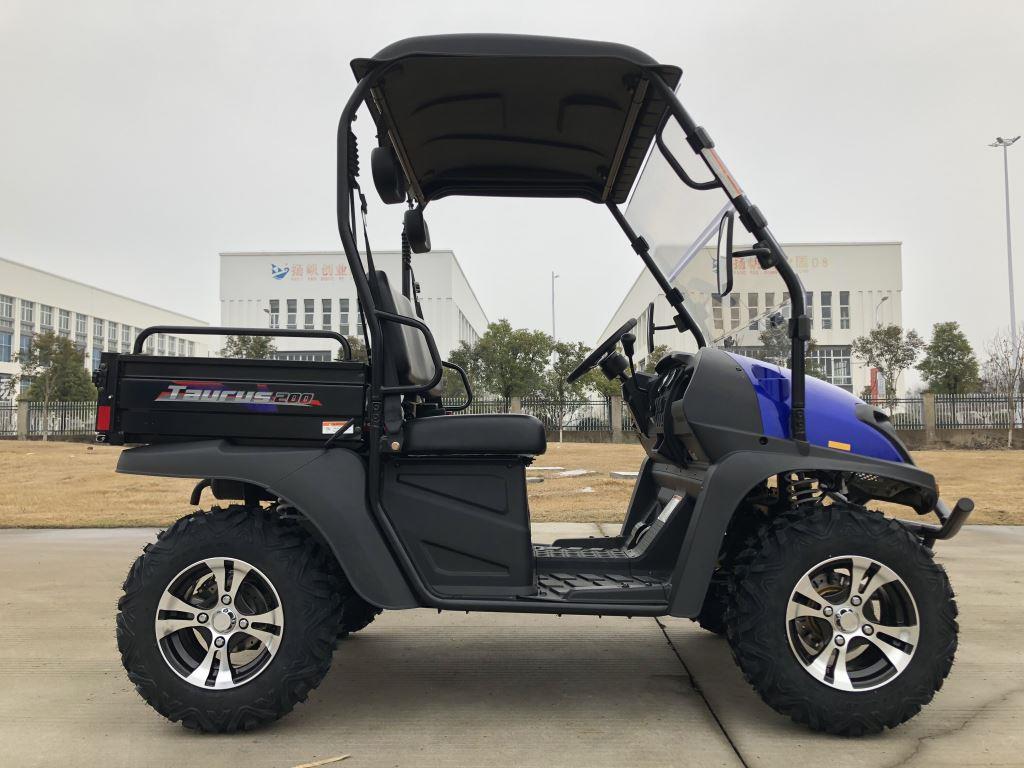

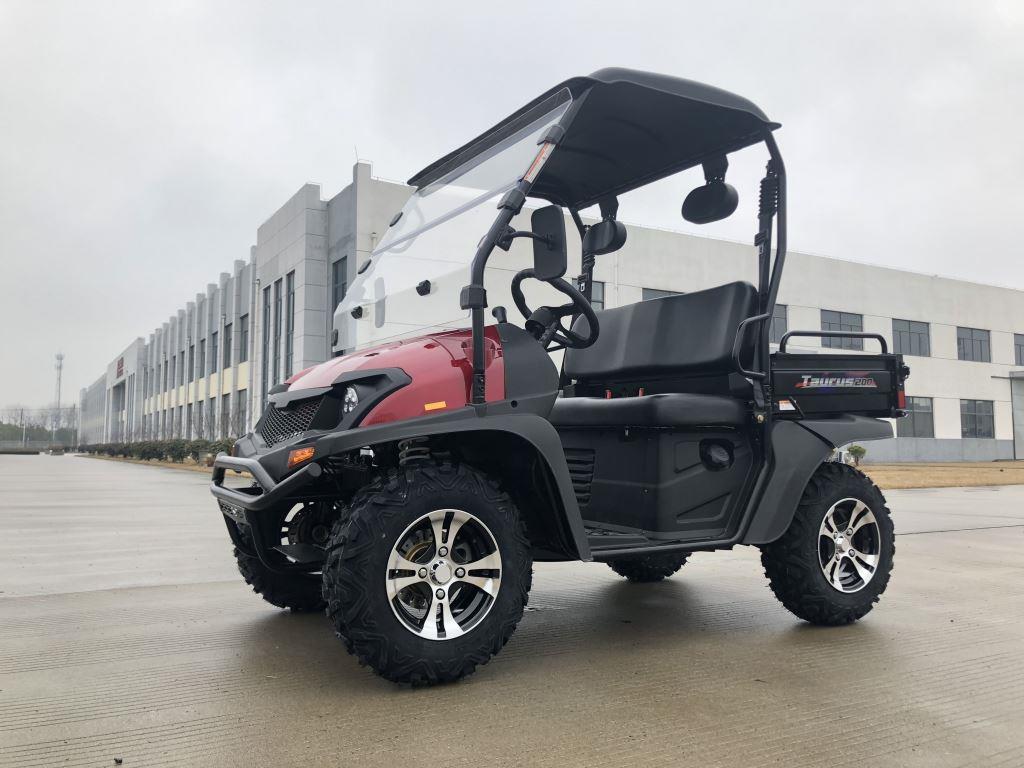

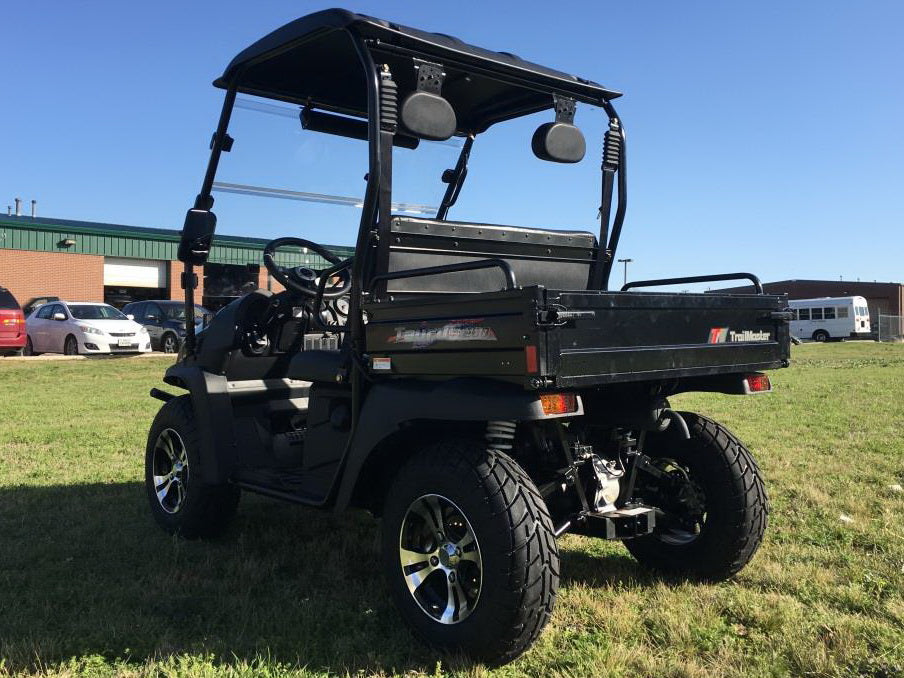

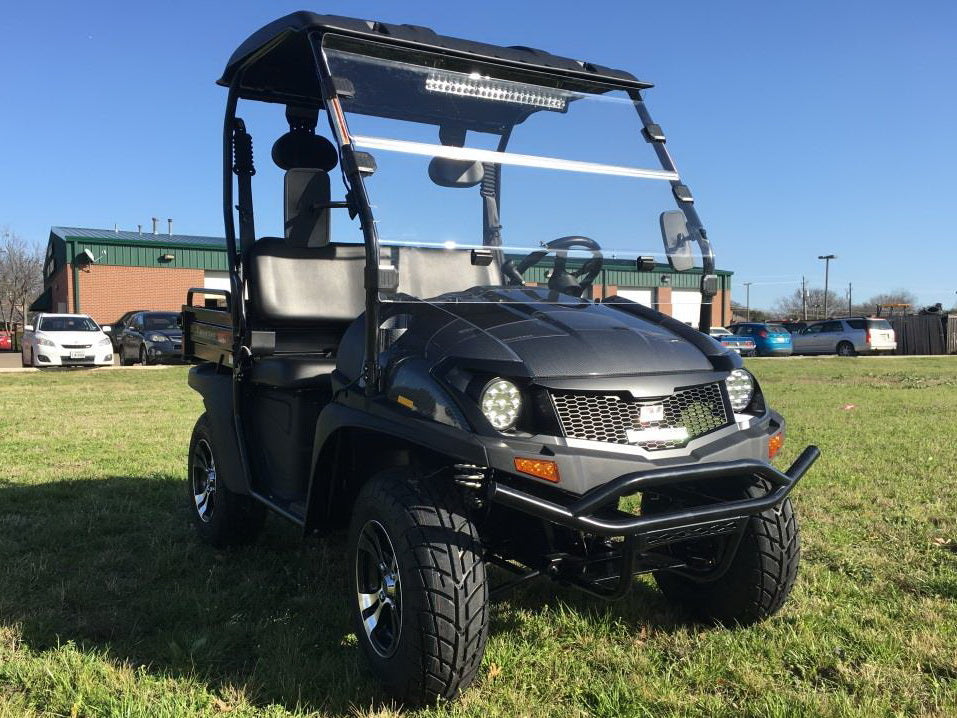

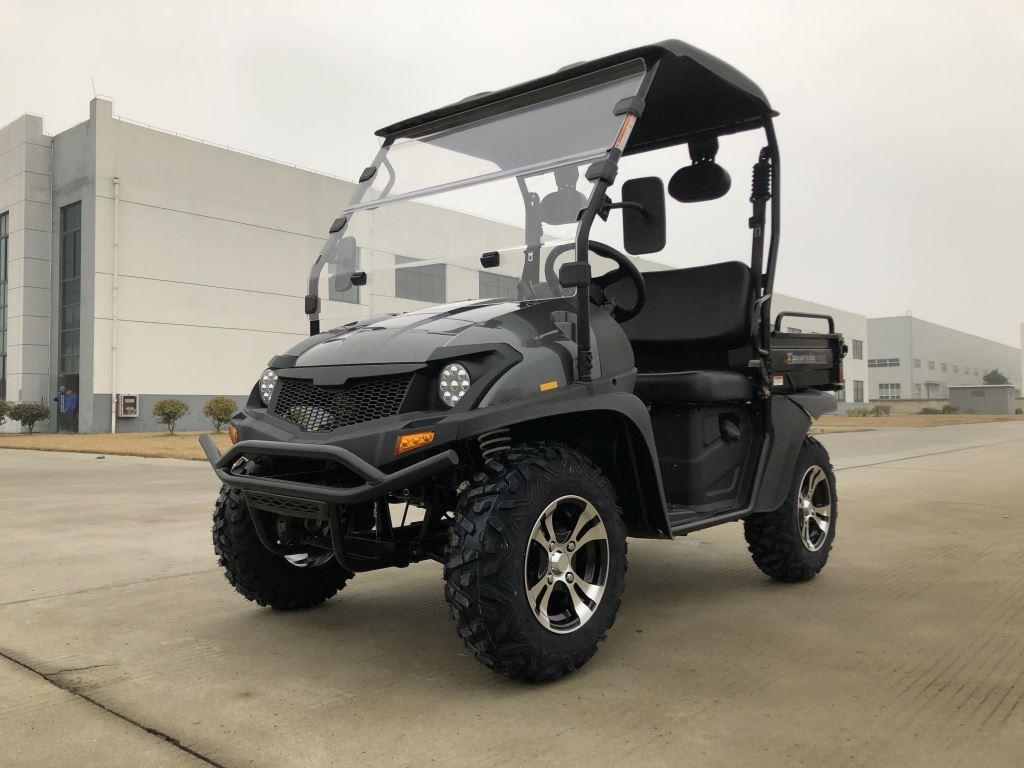

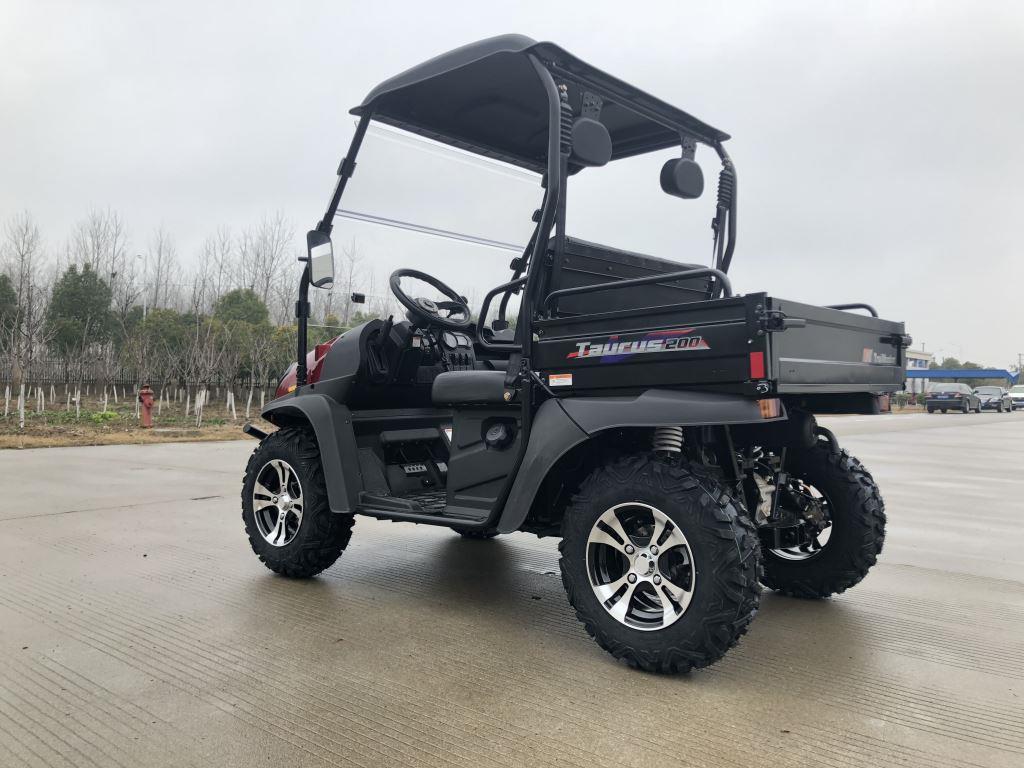

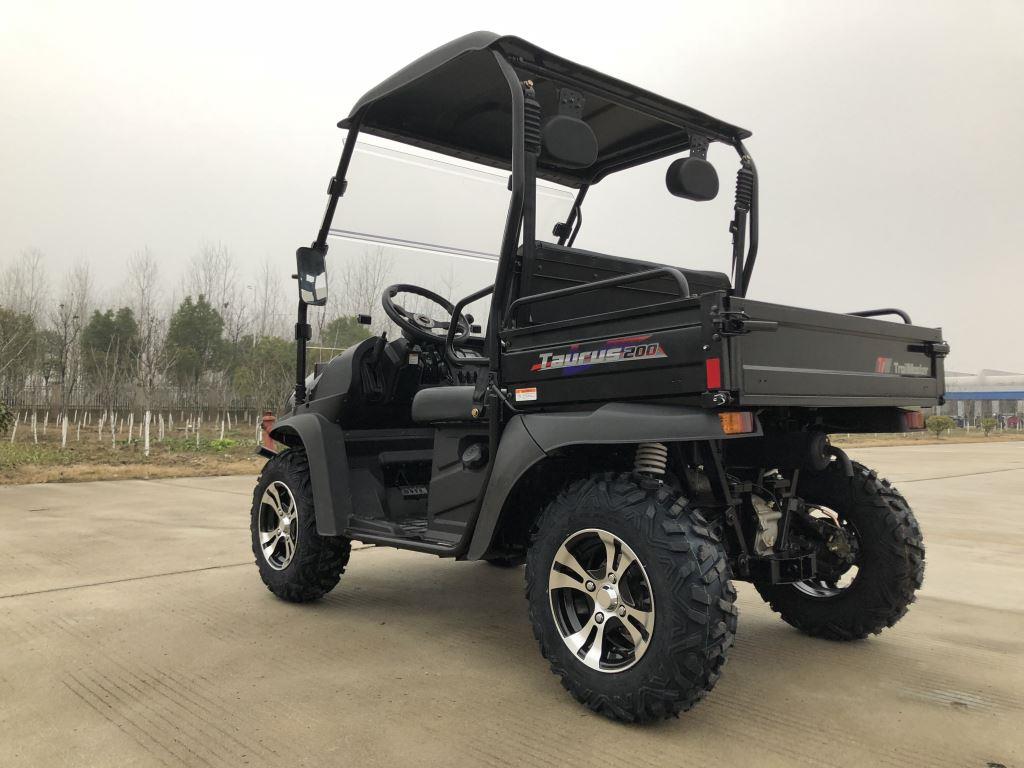

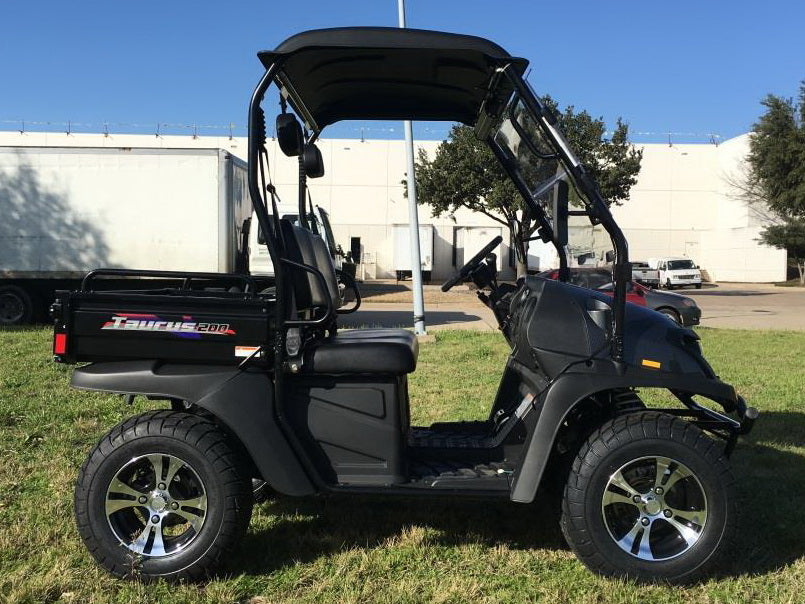

The Taurus 200U utility side by side is equipped with a 9.5 HP air and oil cooled high performance 177cc GY6 engine with internal reverse set up. It comes standard with a H/L gear. The low gear mode has a 40% better climbing ability than the non H/L version and can climb 30 degree slopes with ease. The Taurus 200 has significantly greater torque than the non H/L gear machines and is equipped with 4 wheel independent suspension for optimal driving.

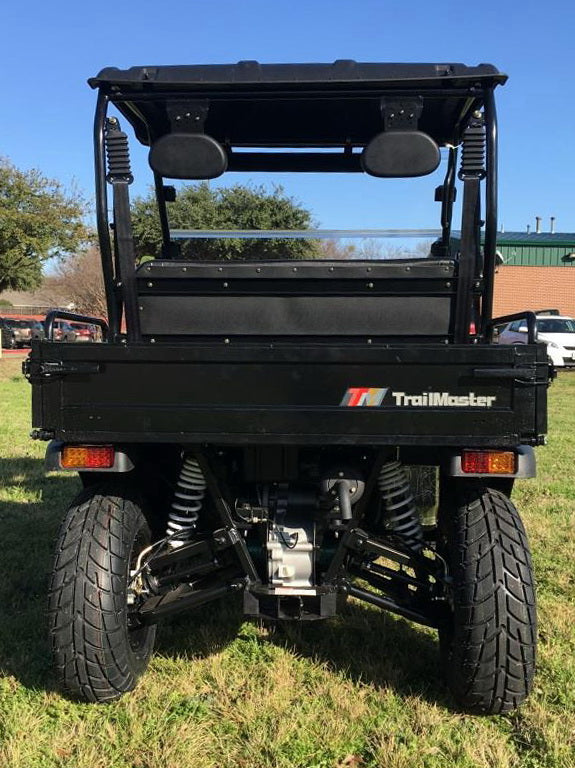

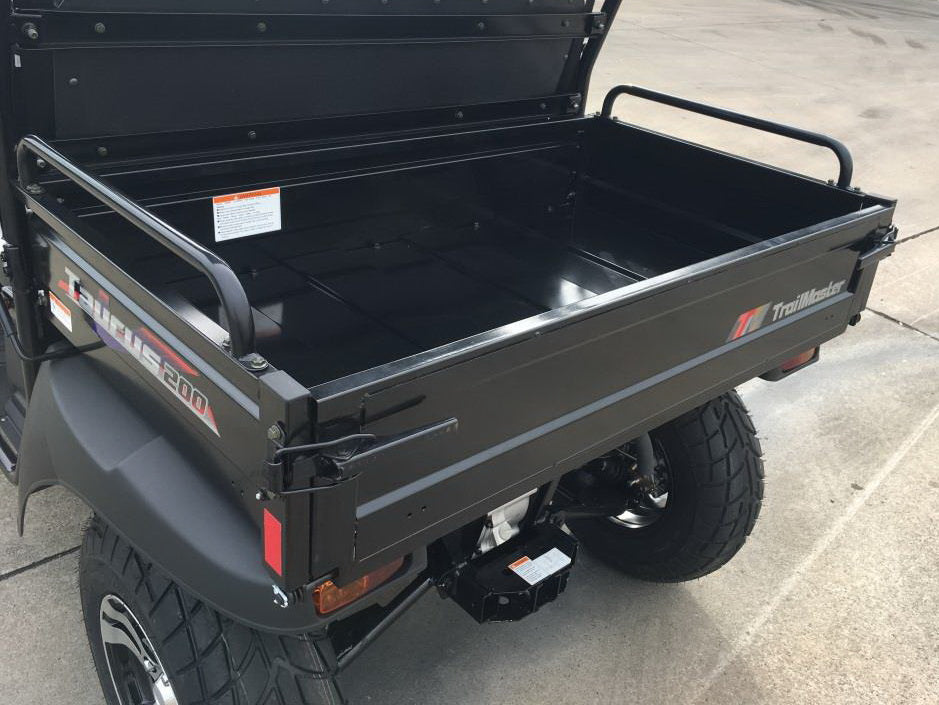

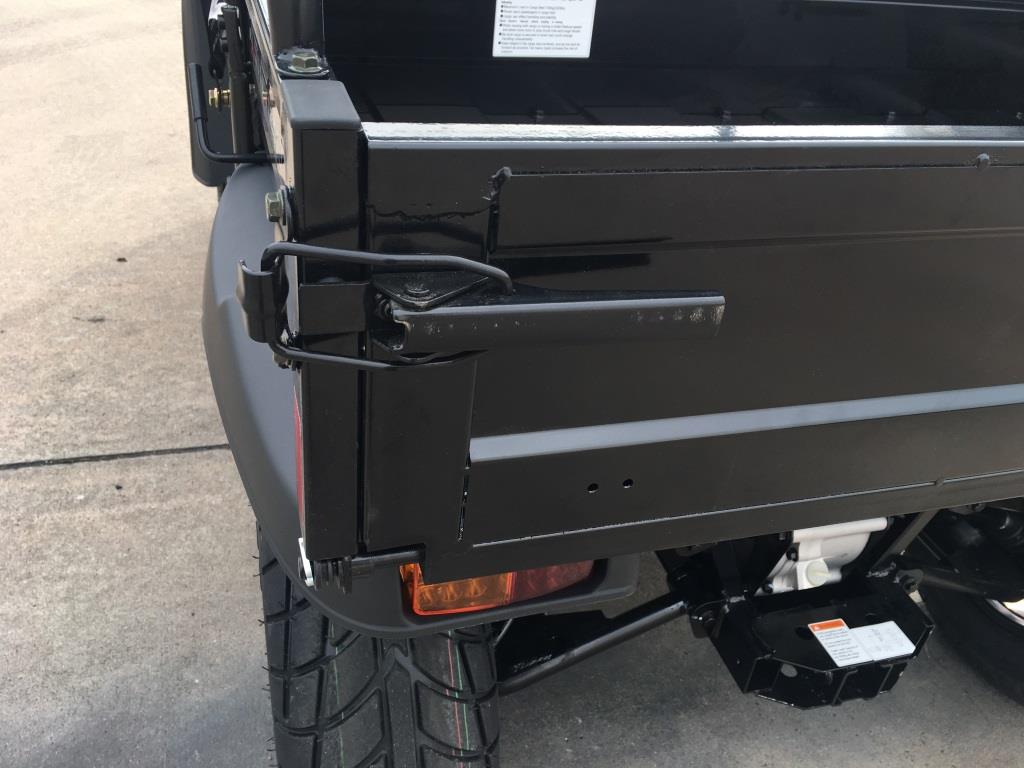

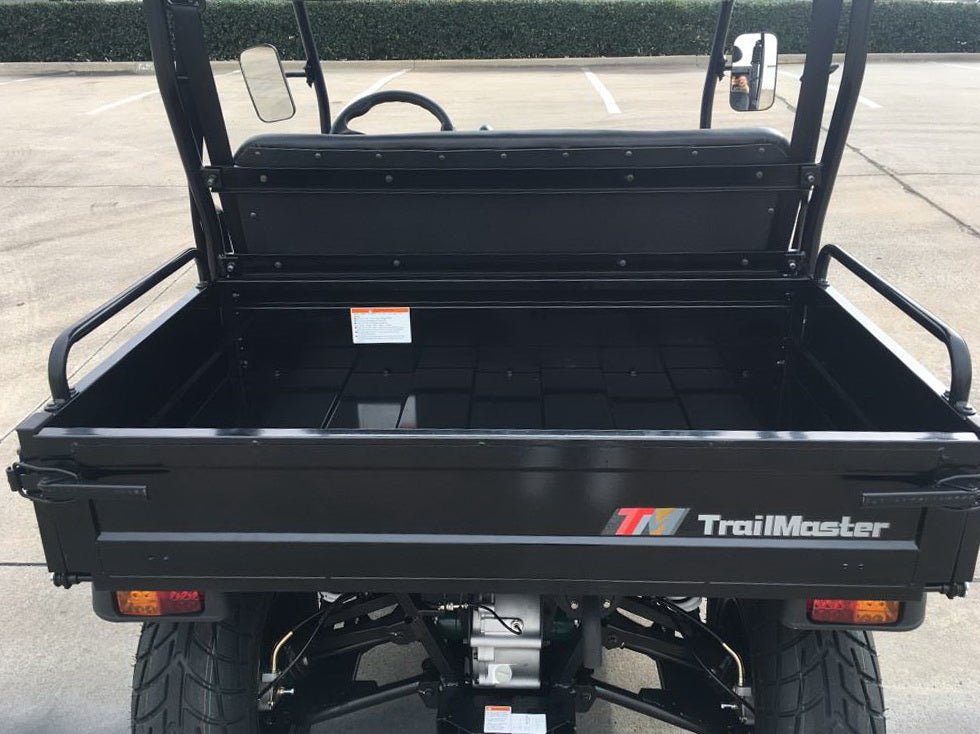

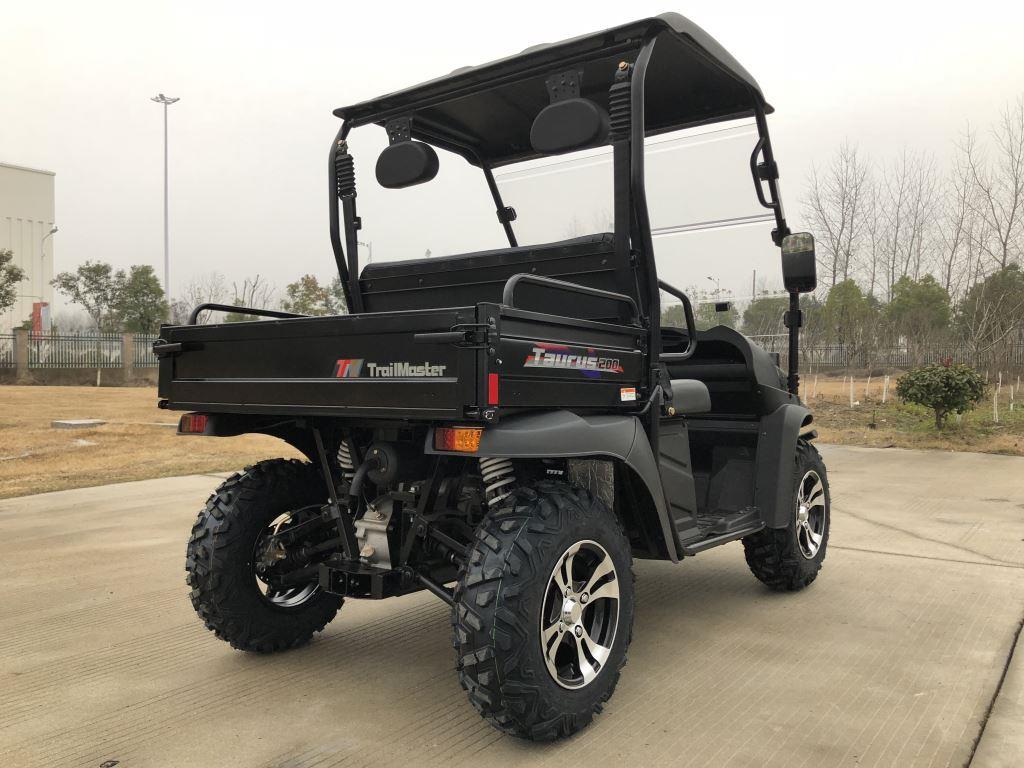

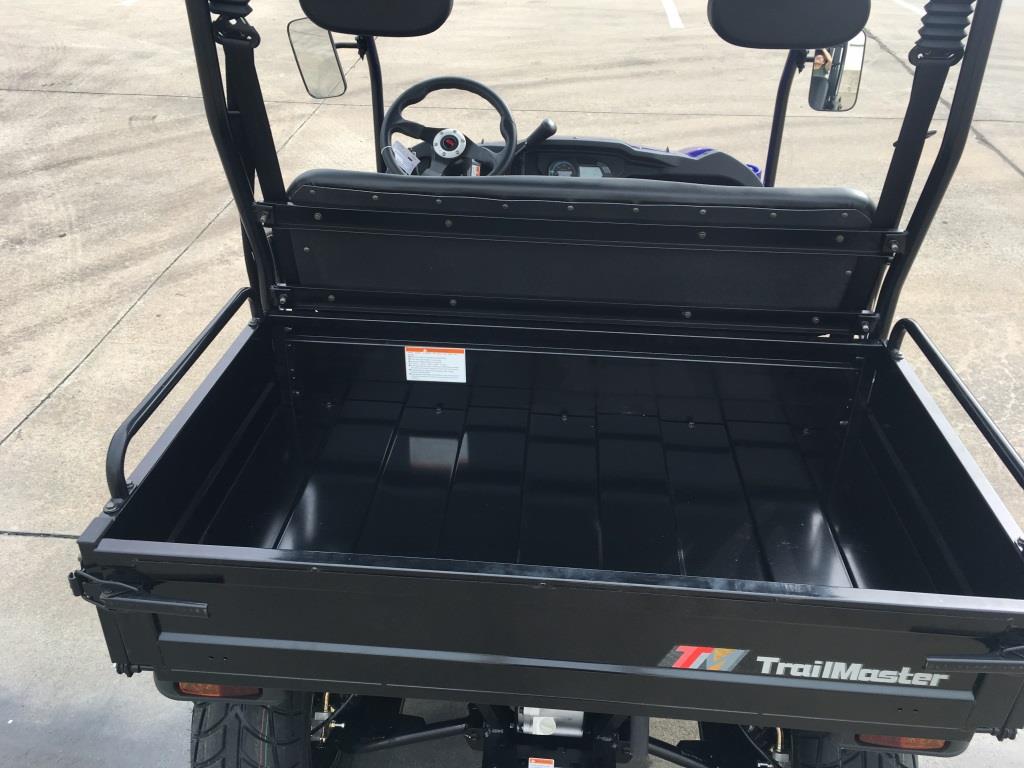

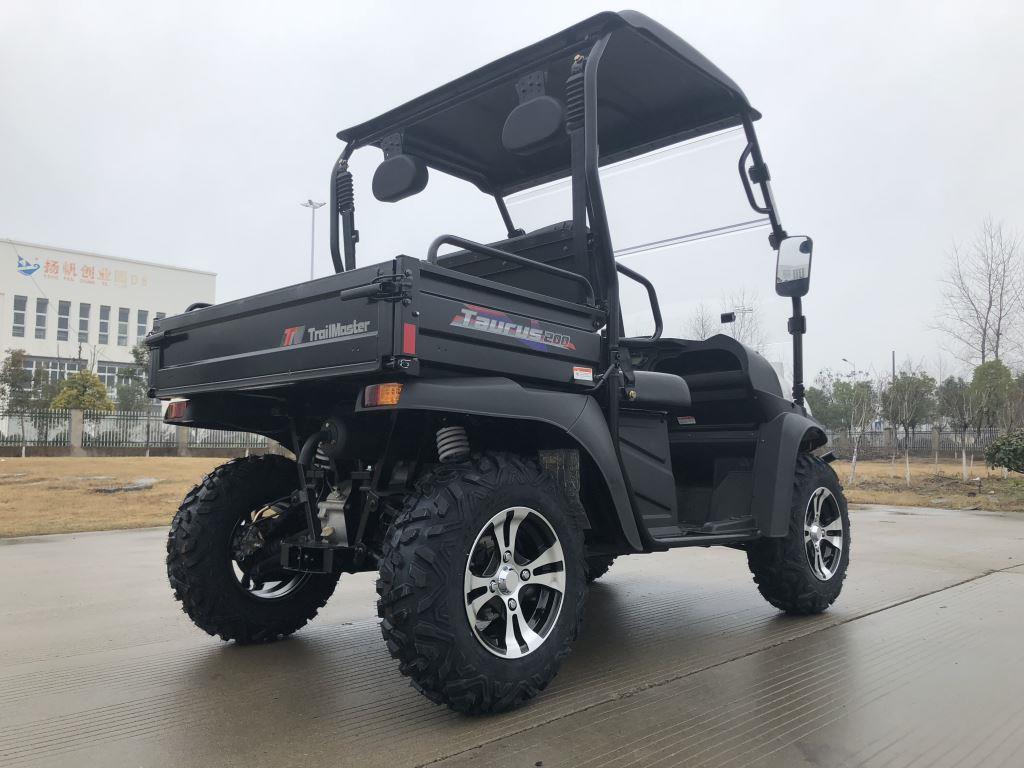

Best of all, this model comes with a 220lb capacity utility dump bed.

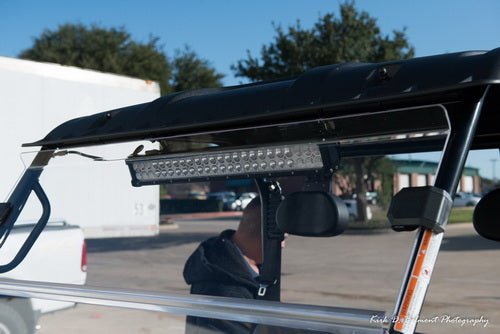

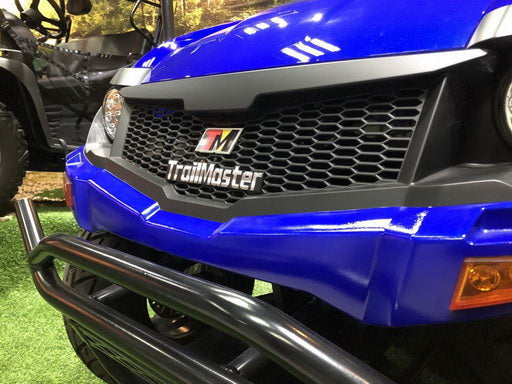

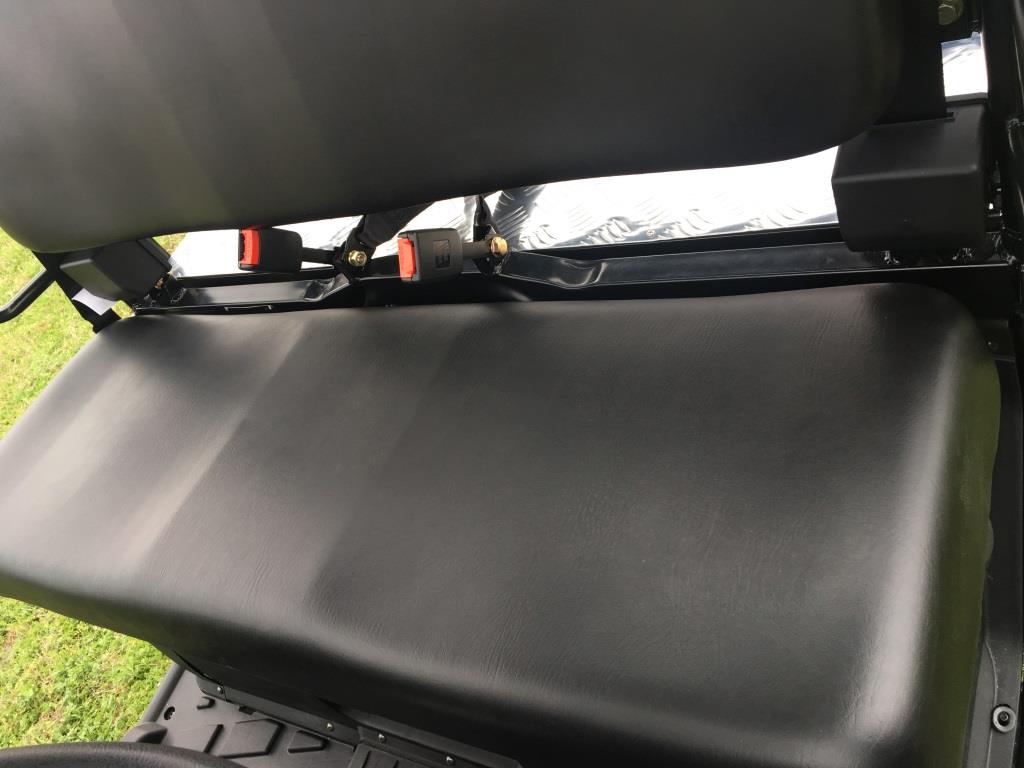

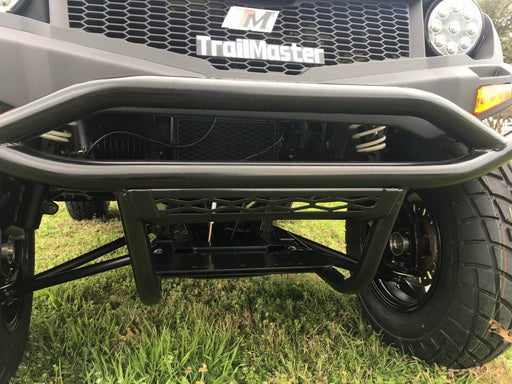

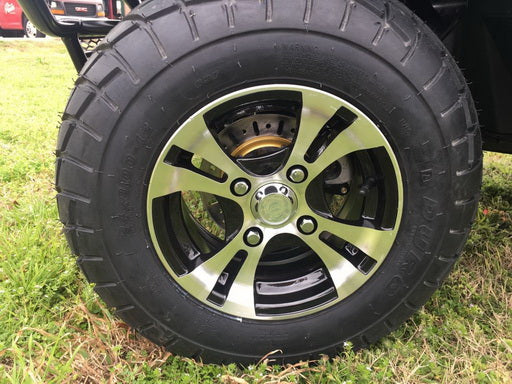

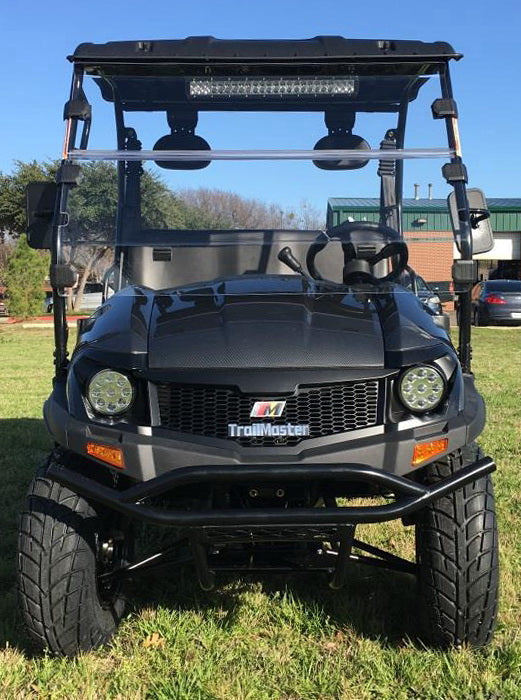

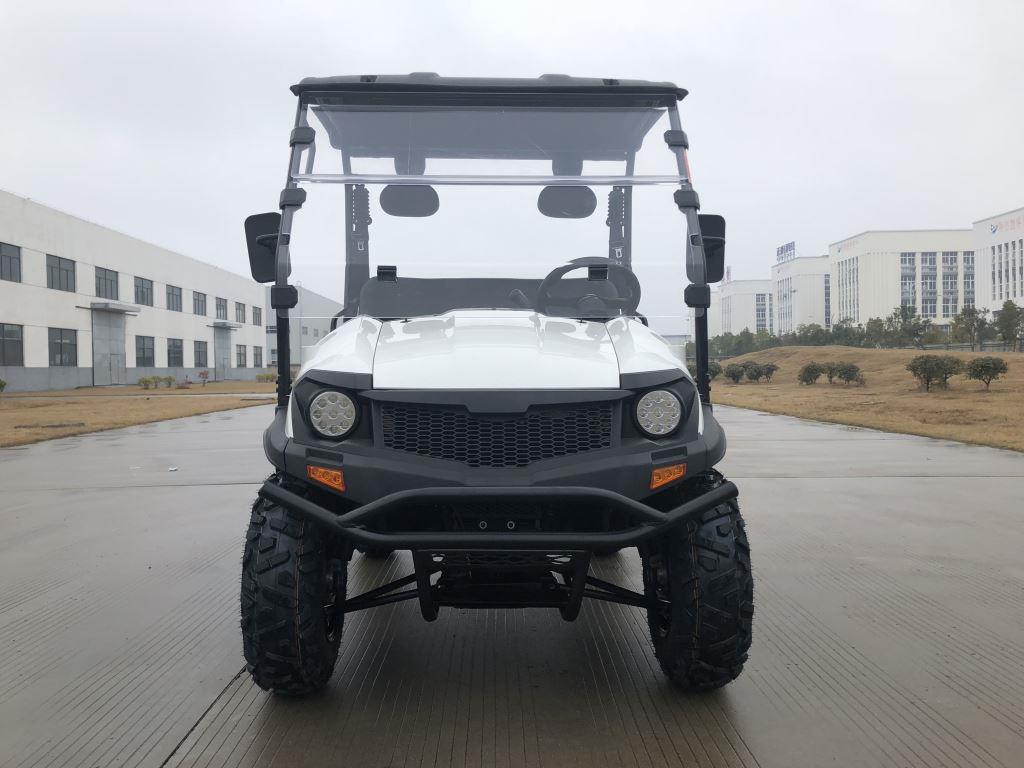

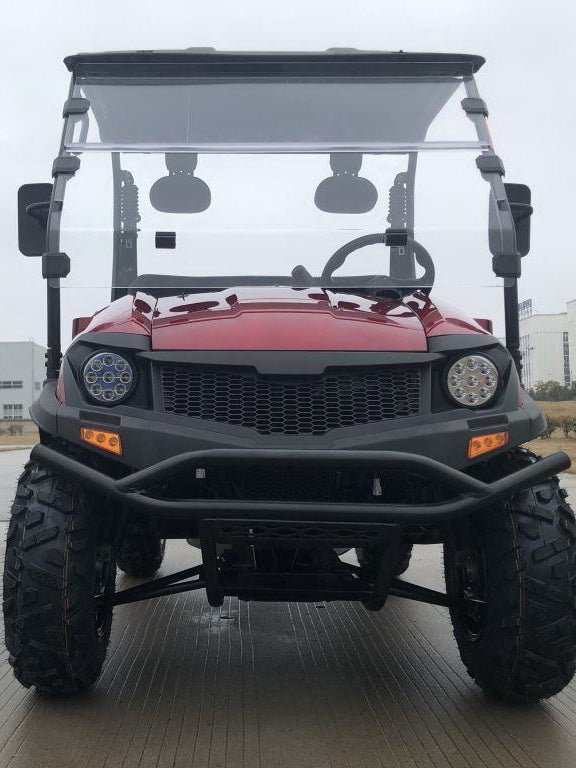

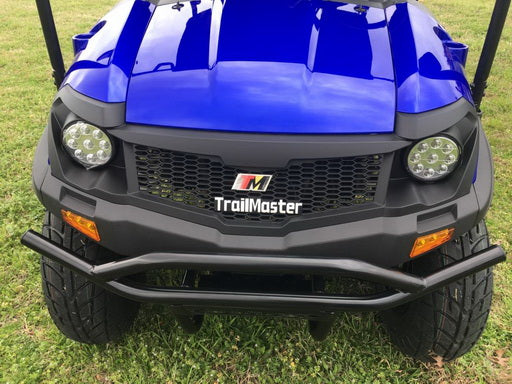

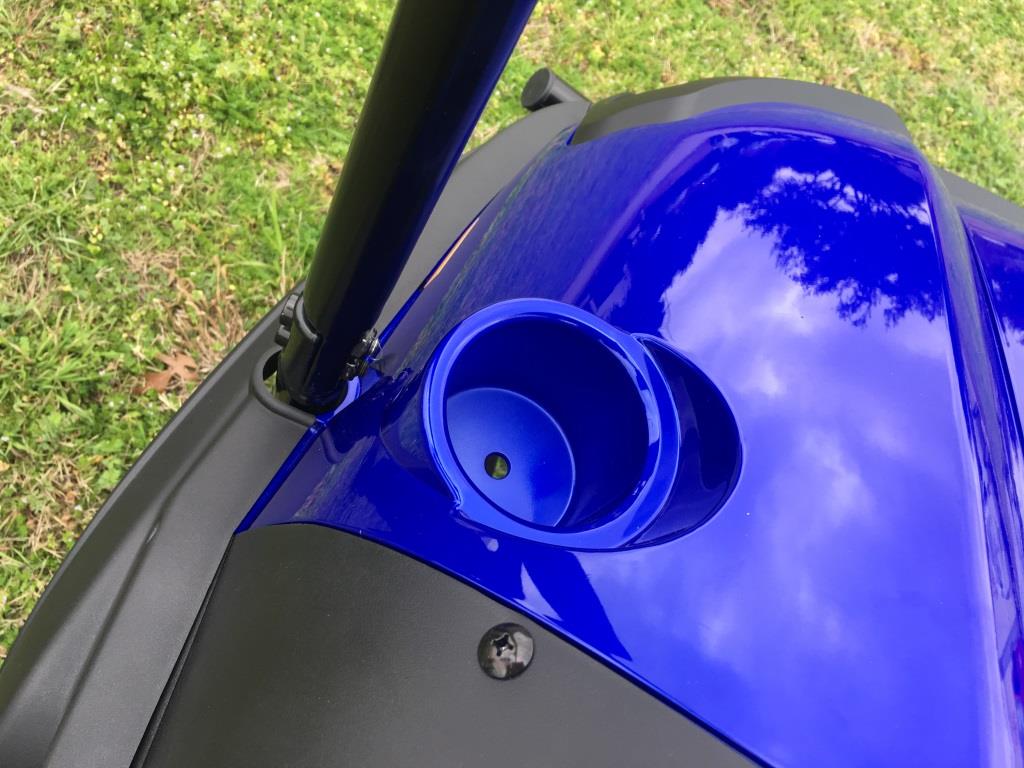

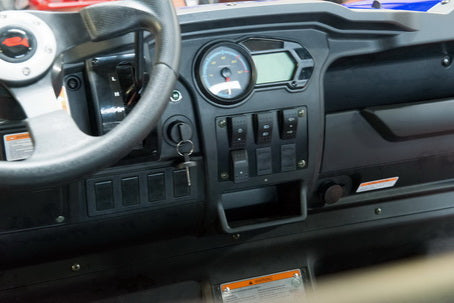

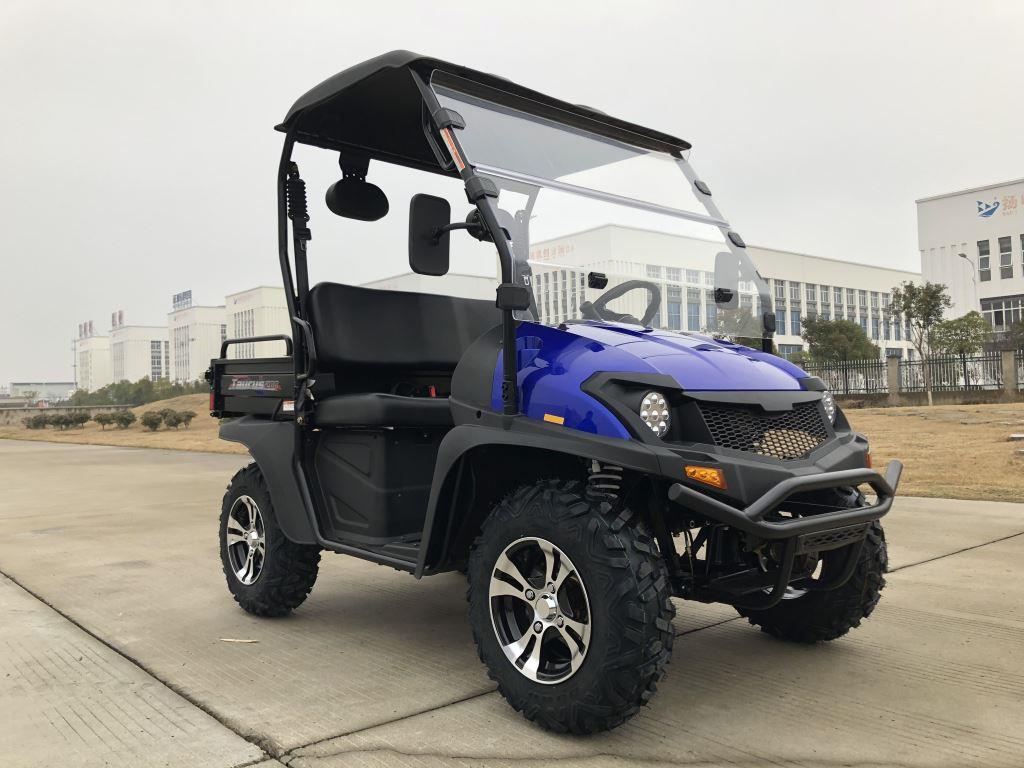

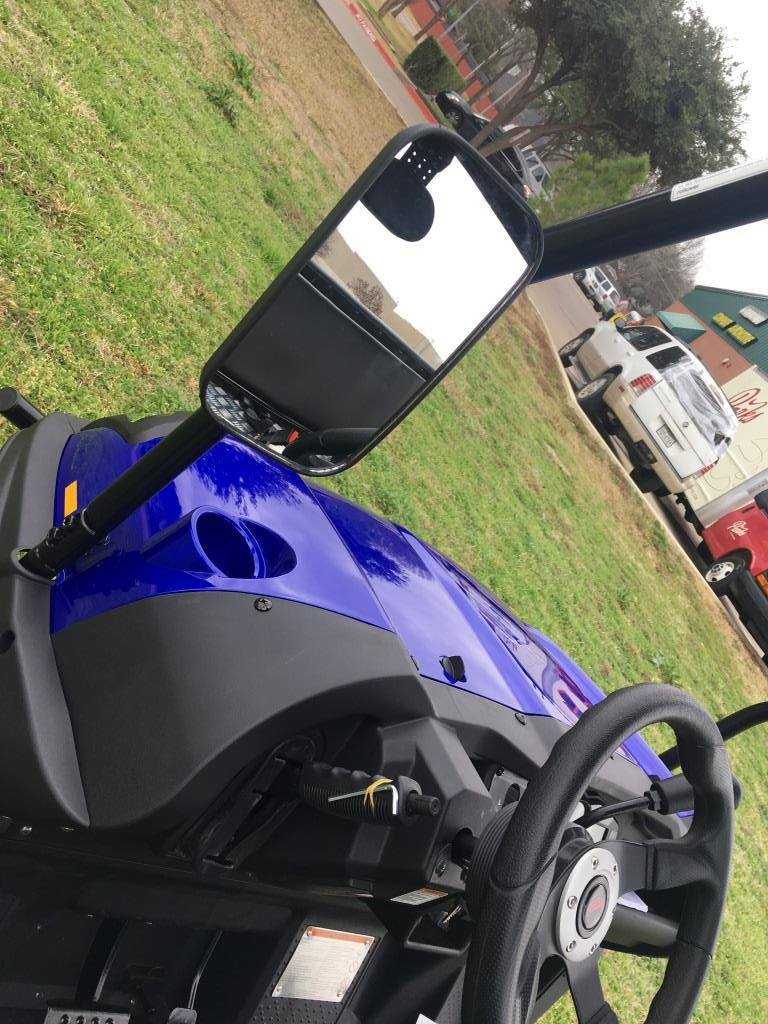

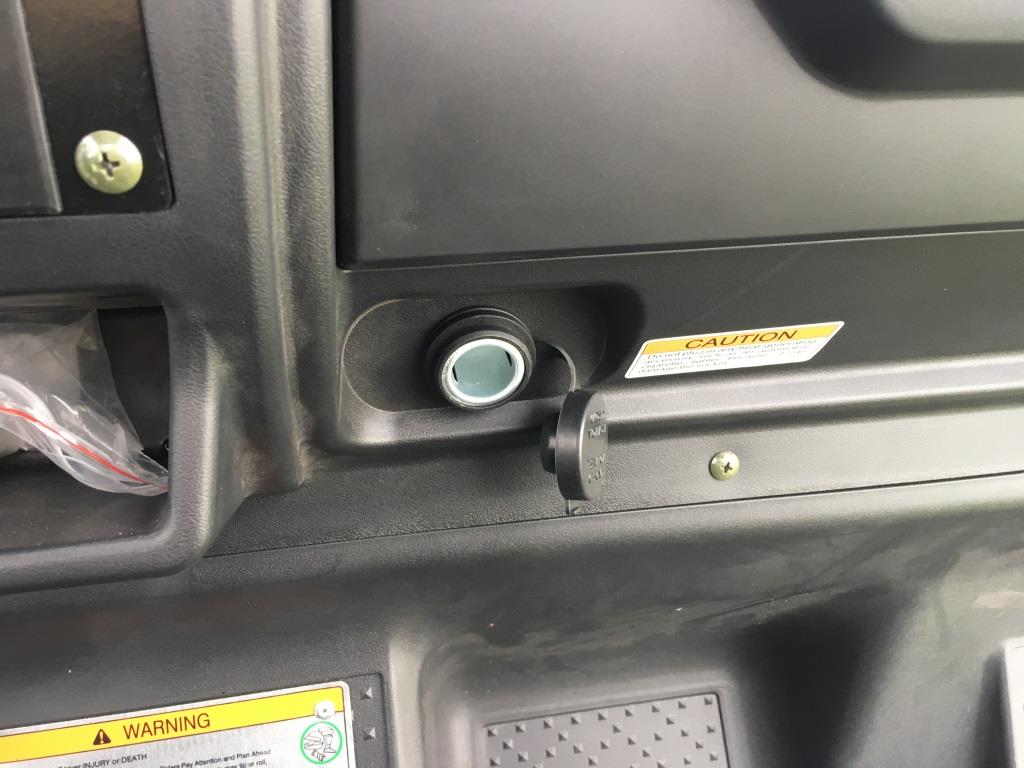

Other notable features includes: aluminum wheels package, large and aggressive front and rear 24 x 8-12 / 24 x 8-12 off-road tires, Hi/Lo LED headlights, turn signals, rearview side mirrors, digital dashboard, hard top, steel front bumper, retractable seatbelt, 12 volt outlet, cup holder.
ENGINE INFORMATION |
|
| • EPA Certificated • Engine Type: 4-stroke, single cylinder, air and oil cooled • Displacement: 177.3cc • Compression Ratio: 8.8:1 • Max HP: 9.5HP • Bore & Stroke: 62.5X57.8 mm • Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM) |
• Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM) • Max Speed: 25mph • Climbing Ability: 30 degrees • Ignition: C.D.I • Starting System: Electric • Battery: 12V 9Ah • Carburetor Brand: Deli • Engine Oil: SAE 15W/40 |
GENERAL INFORMATION |
|

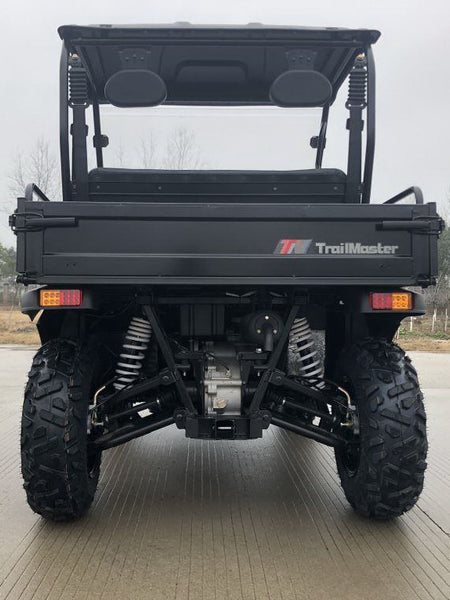

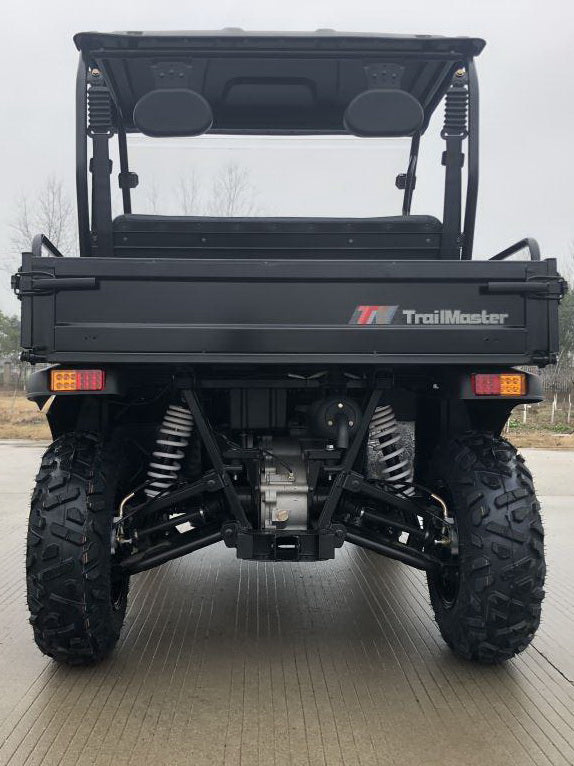

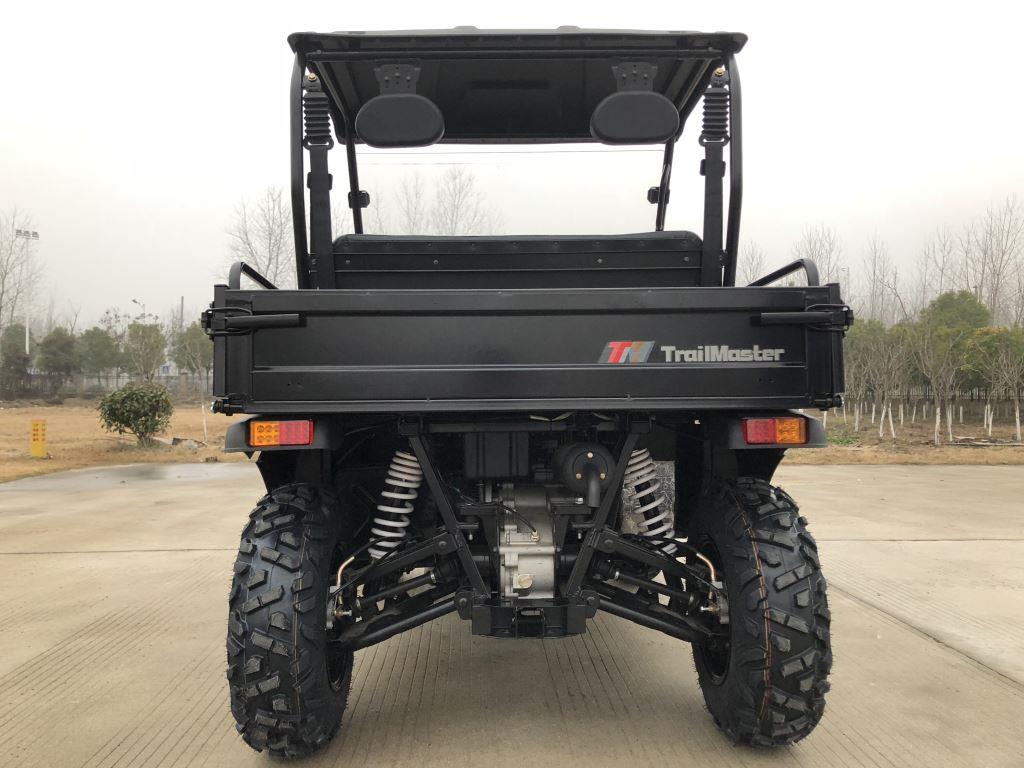

| • Transmission: Auto, L-H-N-R • Drive Train: Shaft Drive; 2 WD: • Drive Mode: Rear Shaft Drive, Rear differential • Suspension, F/R: Front MacPherson, Rear Dual A-ARM • Brakes, F / R: Both hydraulic brakes, Disc |
• Tires, F / R: 24 x 8-12 / 24 x 8-12 • Fuel Tank Capacity: 4.8 gallons • Wheels: Aluminum • Weight, Gross 1018lbs/ net 828 lbs • Max Load: 600 lbs • Dump Bed Capacity: 220 lbs • Towing Capacity: 200 lbs |
DIMENSION INFORMATION |
|
| • Wheelbase: 63” • OA L x W x H: 108”x54”x74” • Seat Height: 33” |
• Min Ground Clearance: 11” • Bump Bed: 26.4”X43.4”X9.5” |
KEY FEATURES |
|

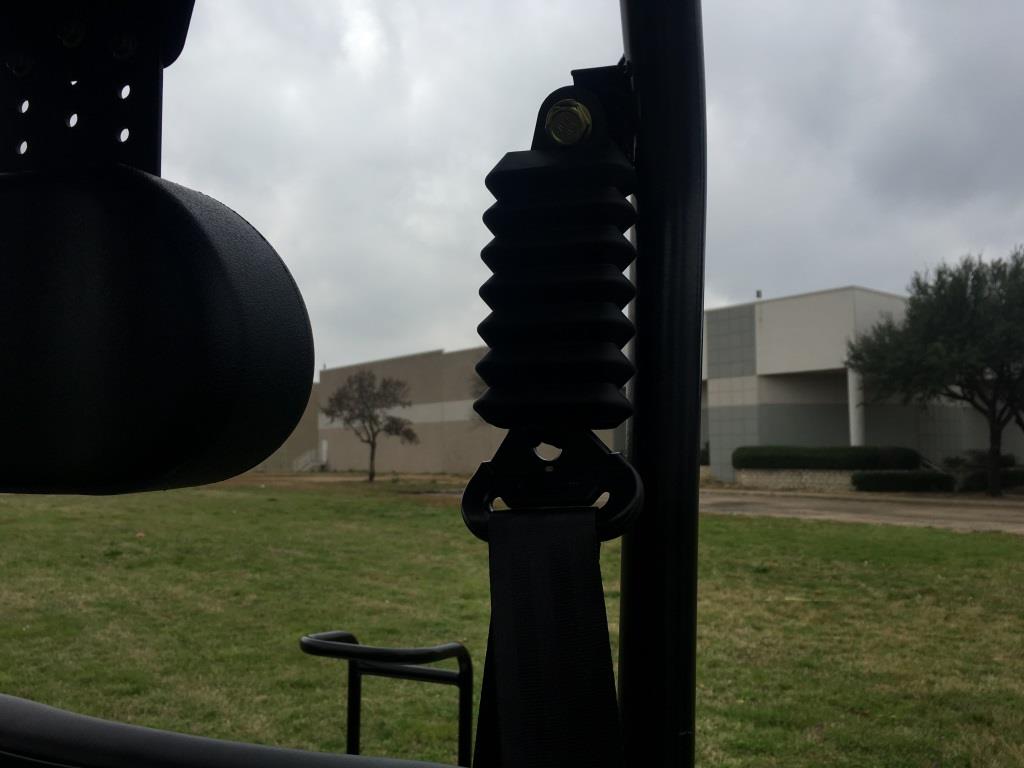

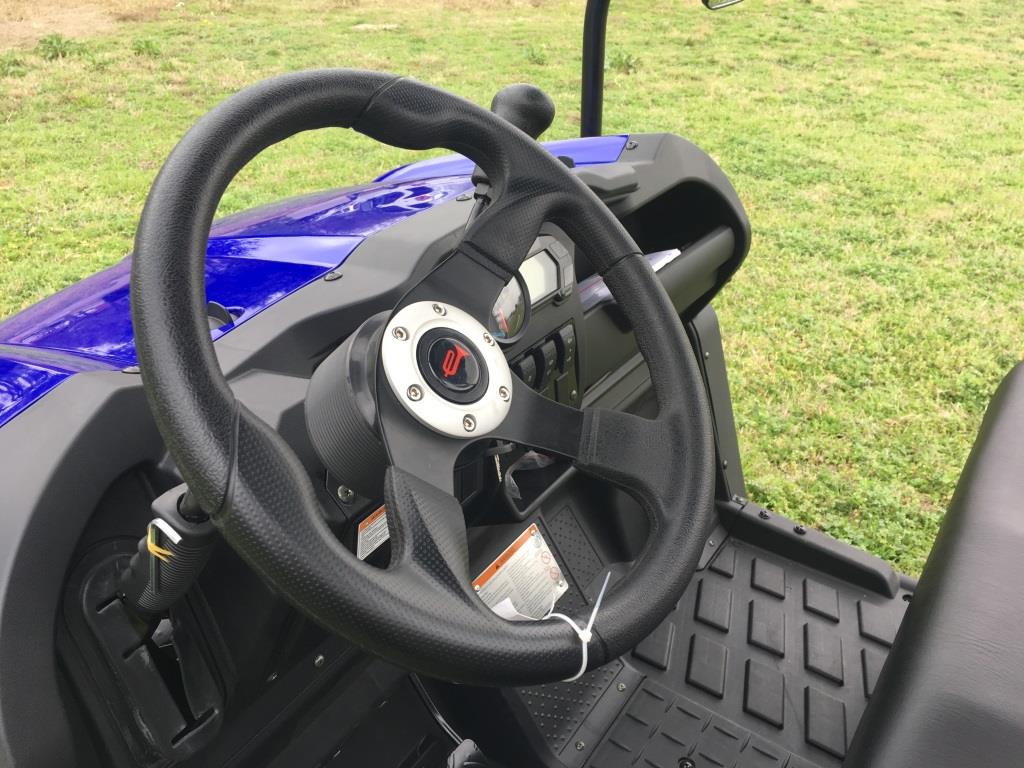

| 1) Equipped with heavy duty steel dump bed 2) Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease. 3) Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency; 4) Four-wheel independent suspension for much better driving experience 5) Heavy duty frame, net weight 828 lbs, max load 600 lbs 6) Digital dashboard 7) LED Hi/Lo head lights 8) Rear view side mirrors 9) Sporting steering wheel 10) Turn signals 11) Retractable safety seatbelt 12) Big aggressive off road tires: F / R: 24 x 8-12 / 24 x 8-12 13) Polished aluminum wheels 14) Hard top 15) Steel front bumper 16) Cup holder 17) 12-V outlet 18) Adjustable heavy duty front and rear shock absorber 19) Rack and pinion steering wheel 20) Front and rear hydraulic disc brake 21) Large gas tank 22) Horn |
|
